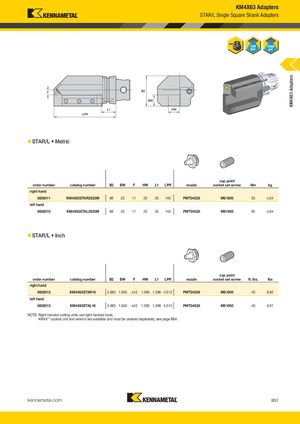

KM4X63 Adapters STAR/L Single Square Shank Adapters KM4X63 Adapters „ STAR/L • Metric cup point order number catalog number B2 BW F HW L1 LPR nozzle socket set screw Nm kg right hand 5638011 KM4X63STAR2525M 68 25 11 25 35 140 PMT04526 MS1950 55 4,04 left hand 5638010 KM4X63STAL2525M 68 25 11 25 35 140 PMT04526 MS1950 55 4,04 „ STAR/L • Inch cup point order number catalog number B2 BW F HW L1 LPR nozzle socket set screw ft. lbs. lbs right hand 5638012 KM4X63STAR16 2.683 1.000 .443 1.000 1.299 5.512 PMT04526 MS1950 40 8.92 left hand 5638013 KM4X63STAL16 2.683 1.000 .443 1.000 1.299 5.512 PMT04526 MS1950 40 8.91 NOTE: Right-handed cutting units use right-handed tools. KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. kennametal.com B51 KMT_KM4X_Catalog_B050_B051_EN.indd 51 L V i KMT KM4X C l B050 B051 EN S b 1 20169/1/16 1 48 2:02 PMPM
