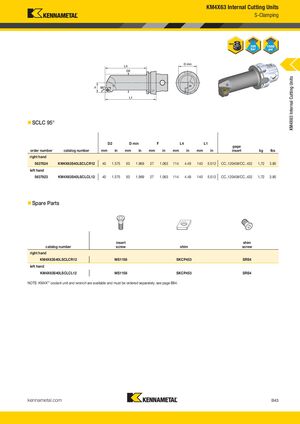

KM4X63 Internal Cutting Units S-Clamping KM4X63 Internal Cutting Units „ SCLC 95° D2 D min F L4 L1 D2 D min F L4 L1 gage order number catalog number mm in mm in mm in mm in mm in insert kg lbs right hand 5637824 KM4X63S40LSCLCR12 40 1.575 50 1.969 27 1.063 114 4.49 140 5.512 CC..120408/CC..432 1,72 3.80 left hand 5637823 KM4X63S40LSCLCL12 40 1.575 50 1.969 27 1.063 114 4.49 140 5.512 CC..120408/CC..432 1,72 3.80 „ Spare Parts insert shim catalog number screw shim screw right hand KM4X63S40LSCLCR12 MS1158 SKCP453 SRS4 left hand KM4X63S40LSCLCL12 MS1158 SKCP453 SRS4 NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. kennametal.com B43 KMT_KM4X_Catalog_B042_B043_EN.indd 43 L V i KMT KM4X C l B042 B043 EN S b 1 20169/1/16 12 112:04 PMPM
