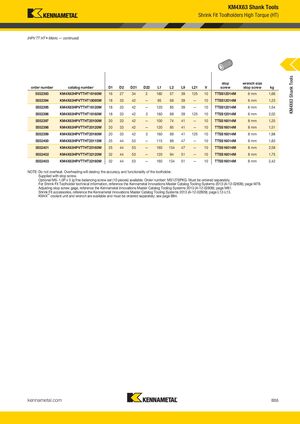

KM4X63 Shank Tools Shrink Fit Toolholders High Torque (HT) (HPV TT HT • Metric — continued) KM4X63 Shank Tools stop wrench size order number catalog number D1 D2 D21 D22 L1 L2 L9 L21 V screw stop screw kg 5552393 KM4X63HPVTTHT16160M 16 27 34 2 160 57 39 125 10 TTSS12014M 6 mm 1,66 5552394 KM4X63HPVTTHT18095M 18 33 42 — 95 69 39 — 10 TTSS12014M 6 mm 1,23 5552395 KM4X63HPVTTHT18120M 18 33 42 — 120 85 39 — 10 TTSS12014M 6 mm 1,54 5552396 KM4X63HPVTTHT18160M 18 33 42 2 160 69 39 125 10 TTSS12014M 6 mm 2,02 5552397 KM4X63HPVTTHT20100M 20 33 42 — 100 74 41 — 10 TTSS16014M 8 mm 1,25 5552398 KM4X63HPVTTHT20120M 20 33 42 — 120 85 41 — 10 TTSS16014M 8 mm 1,51 5552399 KM4X63HPVTTHT20160M 20 33 42 2 160 69 41 125 10 TTSS16014M 8 mm 1,98 5552400 KM4X63HPVTTHT25115M 25 44 53 — 115 89 47 — 10 TTSS16014M 8 mm 1,83 5552401 KM4X63HPVTTHT25160M 25 44 53 — 160 134 47 — 10 TTSS16014M 8 mm 2,58 5552402 KM4X63HPVTTHT32120M 32 44 53 — 120 94 51 — 10 TTSS16014M 8 mm 1,75 5552403 KM4X63HPVTTHT32160M 32 44 53 — 160 134 51 — 10 TTSS16014M 8 mm 2,42 NOTE: Do not overheat. Overheating will destroy the accuracy and functionality of the toolholder. Supplied with stop screw. Optional M6~1.0P x 5 lg fine-balancing screw set (10 pieces) available. Order number: MS1276PKG. Must be ordered separately. For Shrink Fit Toolholder technical information, reference the Kennametal Innovations Master Catalog Tooling Systems 2013 (A-12-02809); page M78. Adjusting stop screw gage, reference the Kennametal Innovations Master Catalog Tooling Systems 2013 (A-12-02809); page M81. Shrink Fit accessories, reference the Kennametal Innovations Master Catalog Tooling Systems 2013 (A-12-02809); page L12-L13. KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. kennametal.com B55 KMT_KM4X_Catalog_B054_B055_EN.indd 55 L V i KMT KM4X C l B054 B055 EN A 31 2016 9/1/16 3 52 PM2:04 PM
