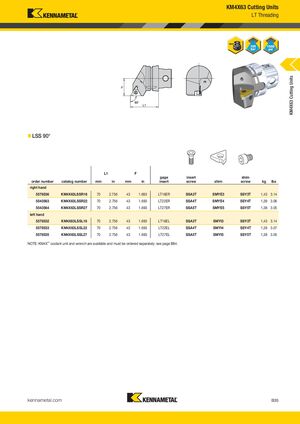

KM4X63 Cutting Units LT Threading KM4X63 Cutting Units „ LSS 90° L1 F L1 F gage insert shim order number catalog number mm in mm in insert screw shim screw kg lbs right hand 5578536 KM4X63LSSR16 70 2.756 43 1.693 LT16ER SSA3T SMYE3 SSY3T 1,43 3.14 5543563 KM4X63LSSR22 70 2.756 43 1.693 LT22ER SSA4T SMYE4 SSY4T 1,39 3.06 5543564 KM4X63LSSR27 70 2.756 43 1.693 LT27ER SSA5T SMYE5 SSY5T 1,38 3.05 left hand 5578532 KM4X63LSSL16 70 2.756 43 1.693 LT16EL SSA3T SMYI3 SSY3T 1,43 3.14 5578533 KM4X63LSSL22 70 2.756 43 1.693 LT22EL SSA4T SMYI4 SSY4T 1,39 3.07 5578535 KM4X63LSSL27 70 2.756 43 1.693 LT27EL SSA5T SMYI5 SSY5T 1,38 3.05 NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. kennametal.com B35 KMT_KM4X_Catalog_B034_B035_EN.indd 35 L V i KMT KM4X C l B034 B035 EN S b 1 20169/1/16 12 082:03 PMPM
