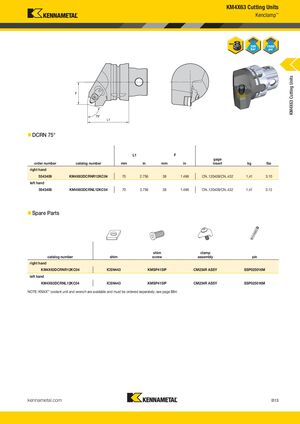

KM4X63 Cutting Units Kenclamp™ KM4X63 Cutting Units „ DCRN 75° L1 F L1 F gage order number catalog number mm in mm in insert kg lbs right hand 5543409 KM4X63DCRNR12KC04 70 2.756 38 1.496 CN..120408/CN..432 1,41 3.10 left hand 5543408 KM4X63DCRNL12KC04 70 2.756 38 1.496 CN..120408/CN..432 1,41 3.12 „ Spare Parts shim clamp catalog number shim screw assembly pin right hand KM4X63DCRNR12KC04 ICSN443 KMSP415IP CM234R ASSY SSP025016M left hand KM4X63DCRNL12KC04 ICSN443 KMSP415IP CM234R ASSY SSP025016M NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. kennametal.com B13 KMT_KM4X_Catalog_B012_B013_EN.indd 13 L V i KMT KM4X C l B012 B013 EN S b 1 20169/1/16 12 002:03 PMPM
