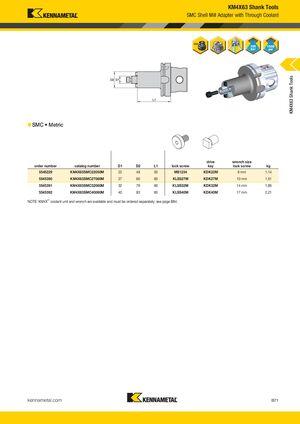

KM4X63 Shank Tools SMC Shell Mill Adapter with Through Coolant KM4X63 Shank Tools „ SMC • Metric drive wrench size order number catalog number D1 D2 L1 lock screw key lock screw kg 5545229 KM4X63SMC22050M 22 49 50 MS1234 KDK22M 8 mm 1,14 5545390 KM4X63SMC27060M 27 60 60 KLSS27M KDK27M 10 mm 1,51 5545391 KM4X63SMC32060M 32 78 60 KLSS32M KDK32M 14 mm 1,85 5545392 KM4X63SMC40060M 40 83 60 KLSS40M KDK40M 17 mm 2,21 NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. kennametal.com B71 KMT_KM4X_Catalog_B070_B071_EN.indd 71 L V i KMT KM4X C l B070 B071 EN A 31 2016 9/1/16 3 58 PM2:03 PM
