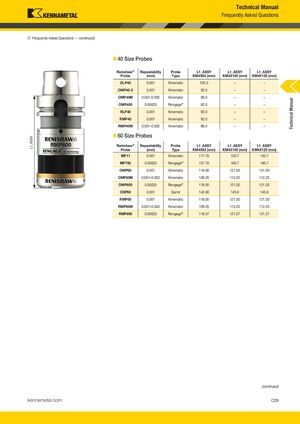

Technical Manual Frequently Asked Questions (7. Frequently Asked Questions — continued) „ 40 Size Probes Renishaw® Repeatability Probe L1_ASSY L1_ASSY L1_ASSY Probe (mm) Type KM4X63 (mm) KM4X100 (mm) KM4X125 (mm) OLP40 0.001 Kinematic 100.3 – – OMP40-2 0.001 Kinematic 92.0 – – OMP40M 0.001-0.002 Kinematic 96.0 – – Technical Manual ® OMP400 0.00025 Rengage 92.0 – – RLP40 0.001 Kinematic 93.0 – – RMP40 0.001 Kinematic 92.0 – – RMP40M 0.001-0.002 Kinematic 96.0 – – „ 60 Size Probes L1_ASSY Renishaw® Repeatability Probe L1_ASSY L1_ASSY L1_ASSY Probe (mm) Type KM4X63 (mm) KM4X100 (mm) KM4X125 (mm) MP11 0.001 Kinematic 117.70 120.7 120.7 ® MP700 0.00025 Rengage 157.70 160.7 160.7 OMP60 0.001 Kinematic 118.00 121.00 121.00 OMP60M 0.001–0.002 Kinematic 109.25 112.25 112.25 OMP600 0.00025 Rengage® 118.00 121.00 121.00 OSP60 0.001 Sprint 142.60 145.6 145.6 RMP60 0.001 Kinematic 118.00 121.00 121.00 RMP60M 0.001–0.002 Kinematic 109.25 112.25 112.25 RMP600 0.00025 Rengage® 118.57 121.57 121.57 (continued) kennametal.com C29 KMT_KM4X_Catalog_C028_C029_EN.indd 29 L V i KMT KM4X C l C028 C029 EN S b 1 20169/1/16 12 562:04 PMPM
