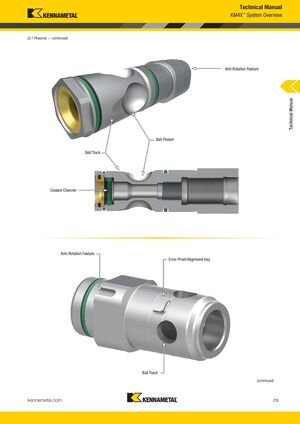

Technical Manual KM4X™ System Overview (2.1 Features — continued) Anti-Rotation Feature Technical Manual Ball Pocket Ball Track Coolant Channel Anti-Rotation Feature Error-Proof/Alignment Key Ball Track (continued) kennametal.com C5 KMT_KM4X_Catalog_C004_C005_EN.indd 5 L V i KMT KM4X C l C004 C005 EN A 31 2016 9/1/16 5 19 PM2:04 PM
