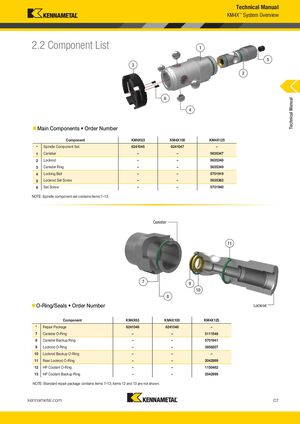

Technical Manual KM4X™ System Overview 2.2 Component List 1 5 3 2 6 Technical Manual 4 „ Main Components • Order Number Component KM4X63 KM4X100 KM4X125 * Spindle Component Set 6241045 6241047 – 1 Canister – – 5635347 2 Lockrod – – 5635348 3 Canister Ring – – 5635349 4 Locking Ball – – 5701919 5 Lockrod Set Screw – – 5635362 6 Set Screw – – 5701940 NOTE: Spindle component set contains items 1–13. Canister 11 7 9 10 8 „ O-Ring/Seals • Order Number Lockrod Component KM4X63 KM4X100 KM4X125 * Repair Package 6241046 6241048 – 7 Canister O-Ring – – 5111548 8 Canister Backup Ring – – 5701941 9 Lockrod O-Ring – – 3858207 10 Lockrod Backup O-Ring – – – 11 Rear Lockrod O-Ring – – 2042999 12 HP Coolant O-Ring – – 1150482 13 HP Coolant Backup Ring – – 2042999 NOTE: Standard repair package contains items 7–13; items 12 and 13 are not shown. kennametal.com C7 KMT_KM4X_Catalog_C006_C007_EN.indd 7 L V i KMT KM4X C l C006 C007 EN S b 1 20169/1/16 12 482:03 PMPM
