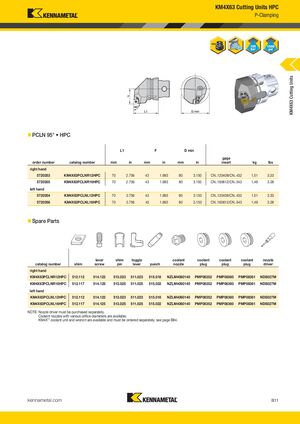

KM4X63 Cutting Units HPC P-Clamping KM4X63 Cutting Units „ PCLN 95° • HPC L1 F D min L1 F D min gage order number catalog number mm in mm in mm in insert kg lbs right hand 5720353 KM4X63PCLNR12HPC 70 2.756 43 1.693 80 3.150 CN..120408/CN..432 1,51 3.33 5720355 KM4X63PCLNR16HPC 70 2.756 43 1.693 80 3.150 CN..160612/CN..543 1,49 3.28 left hand 5720354 KM4X63PCLNL12HPC 70 2.756 43 1.693 80 3.150 CN..120408/CN..432 1,51 3.33 5720356 KM4X63PCLNL16HPC 70 2.756 43 1.693 80 3.150 CN..160612/CN..543 1,49 3.28 „ Spare Parts lever shim toggle coolant coolant coolant coolant nozzle catalog number shim screw pin lever punch nozzle plug plug plug driver right hand KM4X63PCLNR12HPC 512.112 514.123 513.023 511.023 515.018 NZLM4060140 PMP08352 PMP08360 PMP08361 NDS027M KM4X63PCLNR16HPC 512.117 514.125 513.025 511.025 515.022 NZLM4060140 PMP08352 PMP08360 PMP08361 NDS027M left hand KM4X63PCLNL12HPC 512.112 514.123 513.023 511.023 515.018 NZLM4060140 PMP08352 PMP08360 PMP08361 NDS027M KM4X63PCLNL16HPC 512.117 514.125 513.025 511.025 515.022 NZLM4060140 PMP08352 PMP08360 PMP08361 NDS027M NOTE: Nozzle driver must be purchased separately. Coolant nozzles with various orifice diameters are available. KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. kennametal.com B11 KMT_KM4X_Catalog_B010_B011_EN.indd 11 L V i KMT KM4X C l B010 B011 EN A 31 2016 9/1/16 3 17 PM2:03 PM
