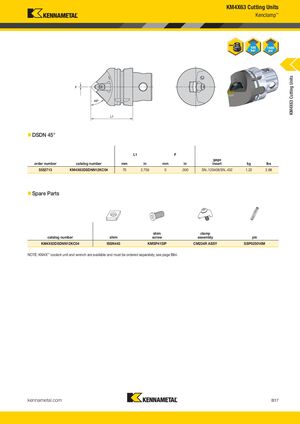

KM4X63 Cutting Units Kenclamp™ KM4X63 Cutting Units „ DSDN 45° L1 F L1 F gage order number catalog number mm in mm in insert kg lbs 5552713 KM4X63DSDNN12KC04 70 2.756 0 .000 SN..120408/SN..432 1,22 2.68 „ Spare Parts shim clamp catalog number shim screw assembly pin KM4X63DSDNN12KC04 ISSN443 KMSP415IP CM234R ASSY SSP025016M NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. kennametal.com B17 KMT_KM4X_Catalog_B016_B017_EN.indd 17 L V i KMT KM4X C l B016 B017 EN A 31 2016 9/1/16 3 20 PM2:05 PM
