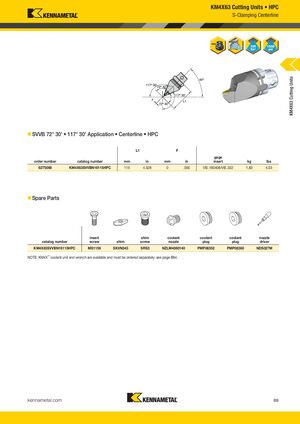

KM4X63 Cutting Units • HPC S-Clamping Centerline KM4X63 Cutting Units „ SVVB 72° 30' • 117° 30' Application • Centerline • HPC L1 F gage order number catalog number mm in mm in insert kg lbs 6275088 KM4X63SVVBN16115HPC 115 4.528 0 .000 VB..160408/VB..332 1,83 4.03 „ Spare Parts insert shim coolant coolant coolant nozzle catalog number screw shim screw nozzle plug plug driver KM4X63SVVBN16115HPC MS1156 SKVN343 SRS3 NZLM4060140 PMP08352 PMP08360 NDS027M NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. kennametal.com B9 KMT_KM4X_Catalog_B008_B009_EN.indd 9 L V i KMT KM4X C l B008 B009 EN S b 1 20169/1/16 11 542:04 AMPM
