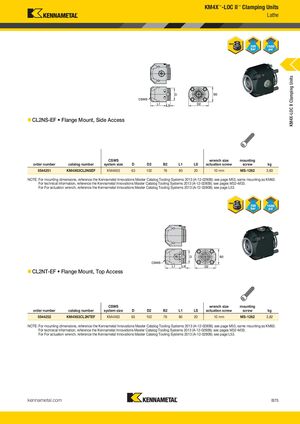

KM4X™-LOC II™ Clamping Units Lathe KM4X-LOC II Clamping Units „ CL2NS-EF • Flange Mount, Side Access CSWS wrench size mounting order number catalog number system size D D2 B2 L1 LS actuation screw screw kg 5544251 KM4X63CL2NSEF KM4X63 63 102 76 80 20 10 mm MS-1262 3,83 NOTE: For mounting dimensions, reference the Kennametal Innovations Master Catalog Tooling Systems 2013 (A-12-02809); see page M53, same mounting as KM63. For technical information, reference the Kennametal Innovations Master Catalog Tooling Systems 2013 (A-12-02809); see pages M32–M33. For For actuation wrench, reference the Kennametal Innovations Master Catalog Tooling Systems 2013 (A-12-02809); see page L53. „ CL2NT-EF • Flange Mount, Top Access CSWS wrench size mounting order number catalog number system size D D2 B2 L1 LS actuation screw screw kg 5544252 KM4X63CL2NTEF KM4X63 63 102 76 80 20 10 mm MS-1262 3,82 NOTE: For mounting dimensions, reference the Kennametal Innovations Master Catalog Tooling Systems 2013 (A-12-02809); see page M53, same mounting as KM63. For technical information, reference the Kennametal Innovations Master Catalog Tooling Systems 2013 (A-12-02809); see pages M32–M33. For For actuation wrench, reference the Kennametal Innovations Master Catalog Tooling Systems 2013 (A-12-02809); see page L53. kennametal.com B75 KMT_KM4X_Catalog_B074_B075_EN.indd 75 L V i KMT KM4X C l B074 B075 EN S b 1 20169/1/16 12 162:02 PMPM
