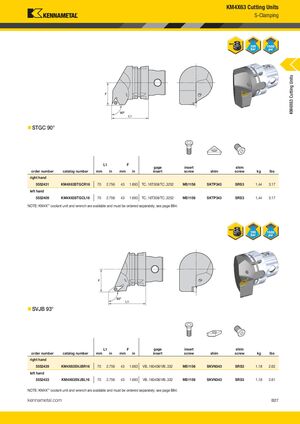

KM4X63 Cutting Units S-Clamping KM4X63 Cutting Units „ STGC 90° L1 F L1 F gage insert shim order number catalog number mm in mm in insert screw shim screw kg lbs right hand 5552431 KM4X63STGCR16 70 2.756 43 1.693 TC..16T308/TC..3252 MS1156 SKTP343 SRS3 1,44 3.17 left hand 5552409 KM4X63STGCL16 70 2.756 43 1.693 TC..16T308/TC..3252 MS1156 SKTP343 SRS3 1,44 3.17 ™ NOTE: KM4X coolant unit and wrench are available and must be ordered separately; see page B84. „ SVJB 93° L1 F L1 F gage insert shim order number catalog number mm in mm in insert screw shim screw kg lbs right hand 5552439 KM4X63SVJBR16 70 2.756 43 1.693 VB..160408/VB..332 MS1156 SKVN343 SRS3 1,18 2.62 left hand 5552433 KM4X63SVJBL16 70 2.756 43 1.693 VB..160408/VB..332 MS1156 SKVN343 SRS3 1,18 2.61 NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. kennametal.com B27 KMT_KM4X_Catalog_B026_B027_EN.indd 27 L V i KMT KM4X C l B026 B027 EN A 31 2016 9/1/16 3 23 PM2:02 PM
