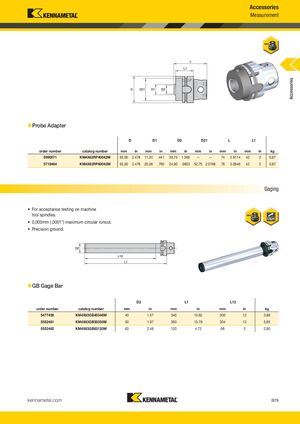

Accessories Measurement Accessories „ Probe Adapter D D1 D2 D21 L L1 order number catalog number mm in mm in mm in mm in mm in mm in kg 5990571 KM4X63RP40042M 63,00 2.478 11,20 .441 39,75 1.565 — — 74 2.9114 42 2 0,87 5718464 KM4X63RP60042M 63,00 2.478 20,06 .790 24,90 .9803 52,75 2.0768 78 3.0846 42 2 0,87 Gaging • For acceptance testing on machine tool spindles. • 0,003mm (.0001") maximum circular runout. • Precision ground. „ GB Gage Bar D2 L1 L13 order number catalog number mm in mm in mm in kg 5477456 KM4X63GB40346M 40 1.57 346 13.62 300 12 3,88 5552461 KM4X63GB50350M 50 1.97 350 13.78 304 12 5,65 5552462 KM4X63GB63120M 63 2.48 120 4.72 68 3 2,90 kennametal.com B79 KMT_KM4X_Catalog_B078_B079_EN.indd 79 L V i KMT KM4X C l B078 B079 EN S b 1 20169/1/16 1 37 2:04 PMPM
