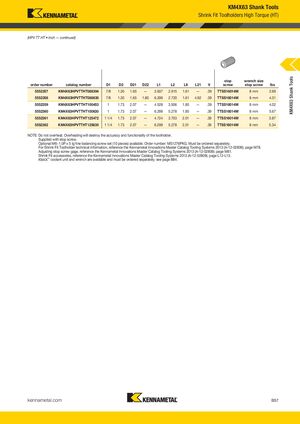

KM4X63 Shank Tools Shrink Fit Toolholders High Torque (HT) (HPV TT HT • Inch — continued) KM4X63 Shank Tools stop wrench size order number catalog number D1 D2 D21 D22 L1 L2 L9 L21 V screw stop screw lbs 5552357 KM4X63HPVTTHT088394 7/8 1.30 1.65 — 3.937 2.915 1.61 — .39 TTSS16014M 8 mm 2.69 5552358 KM4X63HPVTTHT088630 7/8 1.30 1.65 1.80 6.299 2.720 1.61 4.92 .39 TTSS16014M 8 mm 4.31 5552359 KM4X63HPVTTHT100453 1 1.73 2.07 — 4.528 3.506 1.85 — .39 TTSS16014M 8 mm 4.02 5552360 KM4X63HPVTTHT100630 1 1.73 2.07 — 6.299 5.278 1.85 — .39 TTSS16014M 8 mm 5.67 5552361 KM4X63HPVTTHT125472 1 1/4 1.73 2.07 — 4.724 3.703 2.01 — .39 TTSS16014M 8 mm 3.87 5552362 KM4X63HPVTTHT125630 1 1/4 1.73 2.07 — 6.299 5.278 2.01 — .39 TTSS16014M 8 mm 5.34 NOTE: Do not overheat. Overheating will destroy the accuracy and functionality of the toolholder. Supplied with stop screw. Optional M6~1.0P x 5 lg fine-balancing screw set (10 pieces) available. Order number: MS1276PKG. Must be ordered separately. For Shrink Fit Toolholder technical information, reference the Kennametal Innovations Master Catalog Tooling Systems 2013 (A-12-02809); page M78. Adjusting stop screw gage, reference the Kennametal Innovations Master Catalog Tooling Systems 2013 (A-12-02809); page M81. Shrink Fit accessories, reference the Kennametal Innovations Master Catalog Tooling Systems 2013 (A-12-02809); page L12-L13. KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. kennametal.com B57 KMT_KM4X_Catalog_B056_B057_EN.indd 57 L V i KMT KM4X C l B056 B057 EN A 31 2016 9/1/16 3 53 PM2:04 PM
