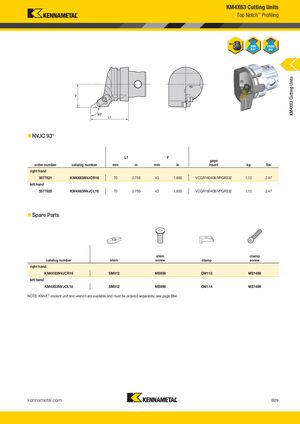

KM4X63 Cutting Units Top Notch™ Profiling KM4X63 Cutting Units „ NVJC 93° L1 F L1 F gage order number catalog number mm in mm in insert kg lbs right hand 5577821 KM4X63NVJCR16 70 2.756 43 1.693 VCGR160408/VPGR332 1,12 2.47 left hand 5577820 KM4X63NVJCL16 70 2.756 43 1.693 VCGR160408/VPGR332 1,12 2.47 „ Spare Parts shim clamp catalog number shim screw clamp screw right hand KM4X63NVJCR16 SM812 MS959 CM113 MS1489 left hand KM4X63NVJCL16 SM812 MS959 CM114 MS1489 NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. kennametal.com B29 KMT_KM4X_Catalog_B028_B029_EN.indd 29 L V i KMT KM4X C l B028 B029 EN A 31 2016 9/1/16 3 24 PM2:05 PM
