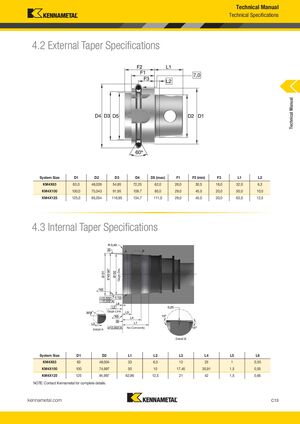

Характеристики внешнего конуса
| Размер системы | D1 | D2 | D3 | D4 | D5 (макс) | F1 | F2 (мин) | F3 | L1 | L2 |
|---|---|---|---|---|---|---|---|---|---|---|
| KM4X63 | 63,0 | 48,026 | 54,95 | 72,25 | 62,0 | 26,0 | 30,5 | 18,0 | 32,0 | 6,3 |
| KM4X100 | 100,0 | 75,043 | 91,95 | 109,7 | 85,0 | 29,0 | 45,0 | 20,0 | 50,0 | 10,0 |
| KM4X125 | 125,0 | 95,054 | 116,95 | 134,7 | 111,0 | 29,0 | 45,0 | 20,0 | 63,0 | 12,5 |
Характеристики внутреннего конуса
| Размер системы | D1 | D2 | L1 | L2 | L3 | L4 | L5 | L6 |
|---|---|---|---|---|---|---|---|---|
| KM4X63 | 63 | 48,004 | 33 | 6,3 | 13 | 23 | 1 | 0,55 |
| KM4X100 | 100 | 74,997 | 50 | 10 | 17,45 | 35,91 | 1,5 | 0,55 |
| KM4X125 | 125 | 94,997 | 62,96 | 12,5 | 21 | 42 | 1,5 | 0,65 |
Примечание: Свяжитесь с компанией Kennametal для получения полной информации.
