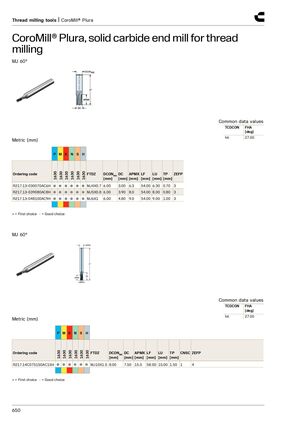

Инструменты для нарезания резьбы фрезерованием | CoroMill® Plura
CoroMill® Plura, цельнотвердосплавная концевая фреза для фрезерования резьбы
MJ 60°
Общие значения: TCDCON h6, FHA [deg] 27.00
| Ordering code | FTDZ | DCONMS [mm] | DC [mm] | APMX [mm] | LF [mm] | LU [mm] | TP [mm] | ZEFP |
|---|---|---|---|---|---|---|---|---|
| R217.13-030070AC6H | MJ4X0.7 | 6.00 | 3.00 | 6.3 | 54.00 | 6.30 | 0.70 | 3 |
| R217.13-039080AC8H | MJ5X0.8 | 6.00 | 3.90 | 8.0 | 54.00 | 8.00 | 0.80 | 3 |
| R217.13-048100AC9H | MJ6X1 | 6.00 | 4.80 | 9.0 | 54.00 | 9.00 | 1.00 | 3 |
● = Первый выбор ○ = Хороший выбор
MJ 60°
Общие значения: TCDCON h6, FHA [deg] 27.00
| Ordering code | FTDZ | DCONMS [mm] | DC [mm] | APMX [mm] | LF [mm] | LU [mm] | TP [mm] | CNSC | ZEFP |
|---|---|---|---|---|---|---|---|---|---|
| R217.14C075150AC15H | MJ10X1.5 | 8.00 | 7.50 | 15.0 | 58.00 | 15.00 | 1.50 | 1 | 4 |
● = Первый выбор ○ = Хороший выбор
