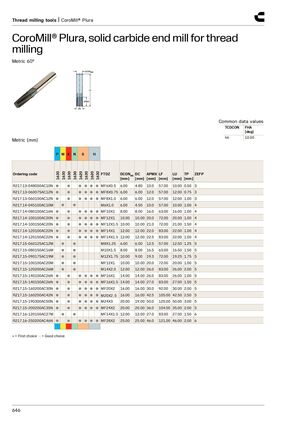

Инструменты для нарезания резьбы фрезерованием | CoroMill® Plura
CoroMill® Plura, цельнотвердосплавная концевая фреза для фрезерования резьбы
Метрическая 60°
| Ordering code | FTDZ | DCONMS [mm] | DC [mm] | APMX [mm] | LF [mm] | LU [mm] | TP | ZEFP |
|---|---|---|---|---|---|---|---|---|
| R217.13-048050AC10N | MF6X0.5 | 6.00 | 4.80 | 10.0 | 57.00 | 10.00 | 0.50 | 3 |
| R217.13-060075AC12N | MF8X0.75 | 6.00 | 6.00 | 12.0 | 57.00 | 12.00 | 0.75 | 3 |
| R217.13-060100AC12N | MF8X1.0 | 6.00 | 6.00 | 12.0 | 57.00 | 12.00 | 1.00 | 3 |
| R217.14-045100AC10M | M6X1.0 | 6.00 | 4.50 | 10.0 | 57.00 | 10.00 | 1.00 | 4 |
| R217.14-080100AC16N | MF10X1 | 8.00 | 8.00 | 16.0 | 63.00 | 16.00 | 1.00 | 4 |
| R217.14-100100AC20N | MF12X1 | 10.00 | 10.00 | 20.0 | 72.00 | 20.00 | 1.00 | 4 |
| R217.14-100150AC20N | MF12X1.5 | 10.00 | 10.00 | 21.0 | 72.00 | 21.00 | 1.50 | 4 |
| R217.14-120100AC22N | MF14X1 | 12.00 | 12.00 | 22.0 | 83.00 | 22.00 | 1.00 | 4 |
| R217.14-120150AC22N | MF14X1.5 | 12.00 | 12.00 | 22.5 | 83.00 | 22.00 | 1.50 | 4 |
| R217.15-060125AC12M | M8X1.25 | 6.00 | 6.00 | 12.5 | 57.00 | 12.50 | 1.25 | 5 |
| R217.15-080150AC16M | M10X1.5 | 8.00 | 8.00 | 16.5 | 63.00 | 16.50 | 1.50 | 5 |
| R217.15-090175AC19M | M12X1.75 | 10.00 | 9.00 | 19.3 | 72.00 | 19.25 | 1.75 | 5 |
| R217.15-100100AC20M | MF12X1 | 10.00 | 10.00 | 20.0 | 72.00 | 20.00 | 1.00 | 5 |
| R217.15-120200AC26M | M14X2.0 | 12.00 | 12.00 | 26.0 | 83.00 | 26.00 | 2.00 | 5 |
| R217.15-140100AC26N | MF16X1 | 14.00 | 14.00 | 26.0 | 83.00 | 26.00 | 1.00 | 5 |
| R217.15-140150AC26N | MF16X1.5 | 14.00 | 14.00 | 27.0 | 83.00 | 27.00 | 1.50 | 5 |
| R217.15-160200AC30N | MF20X2 | 16.00 | 16.00 | 30.0 | 92.00 | 30.00 | 2.00 | 5 |
| R217.15-160250AC42N | M20X2,5 | 16.00 | 16.00 | 42.5 | 105.00 | 42.50 | 2.50 | 5 |
| R217.15-190300AC50N | M24X3 | 20.00 | 19.00 | 50.0 | 125.00 | 50.00 | 3.00 | 5 |
| R217.15-200200AC35N | MF24X2 | 20.00 | 20.00 | 36.0 | 104.00 | 35.00 | 2.00 | 5 |
| R217.16-120150AC27M | MF14X1.5 | 12.00 | 12.00 | 27.0 | 83.00 | 27.00 | 1.50 | 6 |
| R217.16-250200AC46N | MF28X2 | 25.00 | 25.00 | 46.0 | 121.00 | 46.00 | 2.00 | 6 |
Общие значения: TCDCON h6, FHA [deg] 10.00
● = Первый выбор ○ = Хороший выбор
