Инструменты для развёртывания | CoroReamer® 830

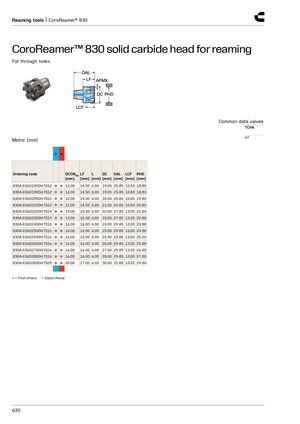

Твердосплавная головка CoroReamer™ 830 для развёртывания
Для сквозных отверстий
| Общие значения | |
|---|---|
| TCHA | H7 |
| Код заказа | P | K | DCONMS | LF [mm] | L [mm] | DC [mm] | OAL [mm] | LCF [mm] | PHD [mm] |
|---|---|---|---|---|---|---|---|---|---|
| 830A-E06D1900H7S12 | ● | ● | 12.00 | 14.50 | 6.00 | 19.00 | 25.85 | 10.83 | 18.80 |
| 830A-E06D1905H7S12 | ● | ● | 12.00 | 14.50 | 6.00 | 19.05 | 25.85 | 10.83 | 18.83 |
| 830A-E06D2000H7S12 | ● | ● | 12.00 | 14.50 | 6.00 | 20.00 | 25.85 | 10.83 | 19.80 |
| 830A-E06D2100H7S12 | ● | ● | 12.00 | 14.50 | 6.00 | 21.00 | 25.85 | 10.83 | 20.80 |
| 830A-E06D2200H7S14 | ● | ● | 14.00 | 15.50 | 6.00 | 22.00 | 27.85 | 13.05 | 21.80 |
| 830A-E06D2300H7S14 | ● | ● | 14.00 | 15.50 | 6.00 | 23.00 | 27.85 | 13.05 | 22.80 |
| 830A-E06D2400H7S16 | ● | ● | 16.00 | 16.00 | 6.00 | 24.00 | 29.85 | 13.05 | 23.80 |
| 830A-E06D2500H7S16 | ● | ● | 16.00 | 16.00 | 6.00 | 25.00 | 29.85 | 13.05 | 24.80 |
| 830A-E06D2540H7S16 | ● | ● | 16.00 | 16.00 | 6.00 | 25.40 | 29.85 | 13.05 | 25.20 |
| 830A-E06D2600H7S16 | ● | ● | 16.00 | 16.00 | 6.00 | 26.00 | 29.85 | 13.05 | 25.80 |
| 830A-E06D2700H7S16 | ● | ● | 16.00 | 16.00 | 6.00 | 27.00 | 29.85 | 13.05 | 26.80 |
| 830A-E06D2800H7S16 | ● | ● | 16.00 | 16.00 | 6.00 | 28.00 | 29.85 | 13.05 | 27.80 |
| 830A-E06D3000H7S20 | ● | ● | 20.00 | 17.00 | 6.00 | 30.00 | 31.85 | 13.22 | 29.80 |
● = первый выбор ○ = хороший выбор
