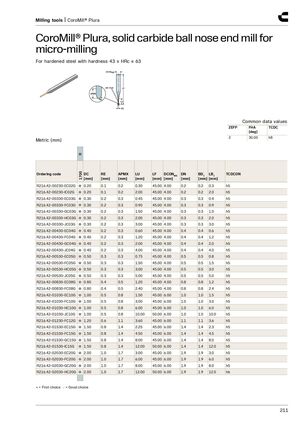

CoroMill® Plura, монолитная концевая фреза со сферическим торцом из твердого сплава для микрофрезерования
Для закаленной стали твердостью 43 ≤ HRc ≤ 63.
Метрическая система (мм)
| Код заказа | DC [мм] | RE [мм] | APMX [мм] | LU [мм] | LF [мм] | DCONMS [мм] | DN [мм] | BD 1_ [мм] | LB 1_ [мм] | TCDCON |
|---|---|---|---|---|---|---|---|---|---|---|
| R216.42-00230-EC02G | 0.20 | 0.1 | 0.2 | 0.30 | 45.00 | 4.00 | 0.2 | 0.2 | 0.3 | h5 |
| R216.42-00230-IC02G | 0.20 | 0.1 | 0.2 | 2.00 | 45.00 | 4.00 | 0.2 | 0.2 | 2.0 | h5 |
| R216.42-00330-EC03G | 0.30 | 0.2 | 0.3 | 0.45 | 45.00 | 4.00 | 0.3 | 0.3 | 0.4 | h5 |
| R216.42-00330-FC03G | 0.30 | 0.2 | 0.3 | 0.90 | 45.00 | 4.00 | 0.3 | 0.3 | 0.9 | h5 |
| R216.42-00330-GC03G | 0.30 | 0.2 | 0.3 | 1.50 | 45.00 | 4.00 | 0.3 | 0.3 | 1.5 | h5 |
| R216.42-00330-HC03G | 0.30 | 0.2 | 0.3 | 2.00 | 45.00 | 4.00 | 0.3 | 0.3 | 2.0 | h5 |
| R216.42-00330-JC03G | 0.30 | 0.2 | 0.3 | 3.00 | 45.00 | 4.00 | 0.3 | 0.3 | 3.0 | h5 |
| R216.42-00430-EC04G | 0.40 | 0.2 | 0.3 | 0.60 | 45.00 | 4.00 | 0.4 | 0.4 | 0.6 | h5 |
| R216.42-00430-FC04G | 0.40 | 0.2 | 0.3 | 1.20 | 45.00 | 4.00 | 0.4 | 0.4 | 1.2 | h5 |
| R216.42-00430-GC04G | 0.40 | 0.2 | 0.3 | 2.00 | 45.00 | 4.00 | 0.4 | 0.4 | 2.0 | h5 |
| R216.42-00430-JC04G | 0.40 | 0.2 | 0.3 | 4.00 | 45.00 | 4.00 | 0.4 | 0.4 | 4.0 | h5 |
| R216.42-00530-EC05G | 0.50 | 0.3 | 0.3 | 0.75 | 45.00 | 4.00 | 0.5 | 0.5 | 0.8 | h5 |
| R216.42-00530-FC05G | 0.50 | 0.3 | 0.3 | 1.50 | 45.00 | 4.00 | 0.5 | 0.5 | 1.5 | h5 |
| R216.42-00530-HC05G | 0.50 | 0.3 | 0.3 | 3.00 | 45.00 | 4.00 | 0.5 | 0.5 | 3.0 | h5 |
| R216.42-00530-JC05G | 0.50 | 0.3 | 0.3 | 5.00 | 45.00 | 4.00 | 0.5 | 0.5 | 5.0 | h5 |
| R216.42-00830-EC08G | 0.80 | 0.4 | 0.5 | 1.20 | 45.00 | 4.00 | 0.8 | 0.8 | 1.2 | h5 |
| R216.42-00830-FC08G | 0.80 | 0.4 | 0.5 | 2.40 | 45.00 | 4.00 | 0.8 | 0.8 | 2.4 | h5 |
| R216.42-01030-EC10G | 1.00 | 0.5 | 0.8 | 1.50 | 45.00 | 6.00 | 1.0 | 1.0 | 1.5 | h5 |
| R216.42-01030-FC10G | 1.00 | 0.5 | 0.8 | 3.00 | 45.00 | 6.00 | 1.0 | 1.0 | 3.0 | h5 |
| R216.42-01030-HC10G | 1.00 | 0.5 | 0.8 | 6.00 | 45.00 | 6.00 | 1.0 | 1.0 | 6.0 | h5 |
| R216.42-01030-JC10G | 1.00 | 0.5 | 0.8 | 10.00 | 50.00 | 6.00 | 1.0 | 1.0 | 10.0 | h5 |
| R216.42-01230-FC12G | 1.20 | 0.6 | 1.1 | 3.60 | 45.00 | 6.00 | 1.1 | 1.1 | 3.6 | h5 |
| R216.42-01530-EC15G | 1.50 | 0.8 | 1.4 | 2.25 | 45.00 | 6.00 | 1.4 | 1.4 | 2.3 | h5 |
| R216.42-01530-FC15G | 1.50 | 0.8 | 1.4 | 4.50 | 45.00 | 6.00 | 1.4 | 1.4 | 4.5 | h5 |
| R216.42-01530-GC15G | 1.50 | 0.8 | 1.4 | 8.00 | 45.00 | 6.00 | 1.4 | 1.4 | 8.0 | h5 |
| R216.42-01530-IC15G | 1.50 | 0.8 | 1.4 | 12.00 | 50.00 | 6.00 | 1.4 | 1.4 | 12.0 | h5 |
| R216.42-02030-EC20G | 2.00 | 1.0 | 1.7 | 3.00 | 45.00 | 6.00 | 1.9 | 1.9 | 3.0 | h5 |
| R216.42-02030-FC20G | 2.00 | 1.0 | 1.7 | 6.00 | 45.00 | 6.00 | 1.9 | 1.9 | 6.0 | h5 |
| R216.42-02030-GC20G | 2.00 | 1.0 | 1.7 | 8.00 | 45.00 | 6.00 | 1.9 | 1.9 | 8.0 | h5 |
| R216.42-02030-HC20G | 2.00 | 1.0 | 1.7 | 12.00 | 50.00 | 6.00 | 1.9 | 1.9 | 12.0 | h6 |
● = Первый выбор ○ = Хороший выбор
