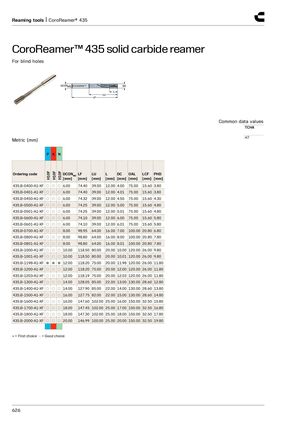

Инструменты для развёртывания | CoroReamer® 435
Твердосплавная цельная развёртка CoroReamer™ 435
Для глухих отверстий
| Общие значения | |
|---|---|
| TCHA | H7 |
| Metric (mm) | P | K | N |
|---|---|---|---|
| H10F | H10F | H10F |
| Код заказа | P | K | N | DCONMS | LF [mm] | LU [mm] | L [mm] | DC [mm] | OAL [mm] | LCF [mm] | PHD [mm] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 435.B-0400-A1-XF | ○ | ○ | ○ | 6.00 | 74.40 | 39.00 | 12.00 | 4.00 | 75.00 | 15.60 | 3.80 |
| 435.B-0401-A1-XF | ○ | ○ | ○ | 6.00 | 74.40 | 39.00 | 12.00 | 4.01 | 75.00 | 15.60 | 3.80 |
| 435.B-0450-A1-XF | ○ | ○ | ○ | 6.00 | 74.32 | 39.00 | 12.00 | 4.50 | 75.00 | 15.60 | 4.30 |
| 435.B-0500-A1-XF | ○ | ○ | ○ | 6.00 | 74.25 | 39.00 | 12.00 | 5.00 | 75.00 | 15.60 | 4.80 |
| 435.B-0501-A1-XF | ○ | ○ | ○ | 6.00 | 74.25 | 39.00 | 12.00 | 5.01 | 75.00 | 15.60 | 4.80 |
| 435.B-0600-A1-XF | ○ | ○ | ○ | 6.00 | 74.10 | 39.00 | 12.00 | 6.00 | 75.00 | 15.60 | 5.80 |
| 435.B-0601-A1-XF | ○ | ○ | ○ | 6.00 | 74.10 | 39.00 | 12.00 | 6.01 | 75.00 | 15.60 | 5.80 |
| 435.B-0700-A1-XF | ○ | ○ | ○ | 8.00 | 98.95 | 64.00 | 16.00 | 7.00 | 100.00 | 20.80 | 6.80 |
| 435.B-0800-A1-XF | ○ | ○ | ○ | 8.00 | 98.80 | 64.00 | 16.00 | 8.00 | 100.00 | 20.80 | 7.80 |
| 435.B-0801-A1-XF | ○ | ○ | ○ | 8.00 | 98.80 | 64.00 | 16.00 | 8.01 | 100.00 | 20.80 | 7.80 |
| 435.B-1000-A1-XF | ○ | ○ | ○ | 10.00 | 118.50 | 80.00 | 20.00 | 10.00 | 120.00 | 26.00 | 9.80 |
| 435.B-1001-A1-XF | ○ | ○ | ○ | 10.00 | 118.50 | 80.00 | 20.00 | 10.01 | 120.00 | 26.00 | 9.80 |
| 435.B-1198-A1-XF | ● | ● | ● | 12.00 | 118.20 | 75.00 | 20.00 | 11.98 | 120.00 | 26.00 | 11.80 |
| 435.B-1200-A1-XF | ○ | ○ | ○ | 12.00 | 118.20 | 75.00 | 20.00 | 12.00 | 120.00 | 26.00 | 11.80 |
| 435.B-1203-A1-XF | ○ | ○ | ○ | 12.00 | 118.19 | 75.00 | 20.00 | 12.03 | 120.00 | 26.00 | 11.80 |
| 435.B-1300-A1-XF | ○ | ○ | ○ | 14.00 | 128.05 | 85.00 | 22.00 | 13.00 | 130.00 | 28.60 | 12.80 |
| 435.B-1400-A1-XF | ○ | ○ | ○ | 14.00 | 127.90 | 85.00 | 22.00 | 14.00 | 130.00 | 28.60 | 13.80 |
| 435.B-1500-A1-XF | ○ | ○ | ○ | 16.00 | 127.75 | 82.00 | 22.00 | 15.00 | 130.00 | 28.60 | 14.80 |
| 435.B-1600-A1-XF | ○ | ○ | ○ | 16.00 | 147.60 | 102.00 | 25.00 | 16.00 | 150.00 | 32.50 | 15.80 |
| 435.B-1700-A1-XF | ○ | ○ | ○ | 18.00 | 147.45 | 102.00 | 25.00 | 17.00 | 150.00 | 32.50 | 16.80 |
| 435.B-1800-A1-XF | ○ | ○ | ○ | 18.00 | 147.30 | 102.00 | 25.00 | 18.00 | 150.00 | 32.50 | 17.80 |
| 435.B-2000-A1-XF | ○ | ○ | ○ | 20.00 | 146.99 | 100.00 | 25.00 | 20.00 | 150.00 | 32.50 | 19.80 |
● = первый выбор ○ = хороший выбор
