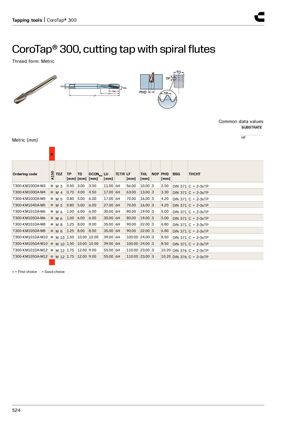

CoroTap® 300, резьбонарезной метчик со спиральными канавками
Форма резьбы: метрическая
Общие значения
Подложка: HF
Метрические размеры (мм)
| Условное обозначение | Группа K | Резьба | TP, мм | TD, мм | DCONMS, мм | LU, мм | Допуск | LF, мм | THL, мм | NOF | PHD, мм | BSG / THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T300-KM100DA-M3 | ● | M3 | 0.50 | 3.00 | 3.50 | 11.00 | 6H | 56.00 | 10.00 | 3 | 2.50 | DIN 371, C = 2–3×TP |
| T300-KM100DA-M4 | ● | M4 | 0.70 | 4.00 | 4.50 | 17.00 | 6H | 63.00 | 13.00 | 3 | 3.30 | DIN 371, C = 2–3×TP |
| T300-KM100DA-M5 | ● | M5 | 0.80 | 5.00 | 6.00 | 17.00 | 6H | 70.00 | 16.00 | 3 | 4.20 | DIN 371, C = 2–3×TP |
| T300-KM104DA-M5 | ● | M5 | 0.80 | 5.00 | 6.00 | 27.00 | 6H | 70.00 | 16.00 | 3 | 4.20 | DIN 371, C = 2–3×TP |
| T300-KM101DA-M6 | ● | M6 | 1.00 | 6.00 | 6.00 | 30.00 | 6H | 80.00 | 19.00 | 3 | 5.00 | DIN 371, C = 2–3×TP |
| T300-KM105DA-M6 | ● | M6 | 1.00 | 6.00 | 6.00 | 30.00 | 6H | 80.00 | 19.00 | 3 | 5.00 | DIN 371, C = 2–3×TP |
| T300-KM101DA-M8 | ● | M8 | 1.25 | 8.00 | 8.00 | 35.00 | 6H | 90.00 | 22.00 | 3 | 6.80 | DIN 371, C = 2–3×TP |
| T300-KM105DA-M8 | ● | M8 | 1.25 | 8.00 | 8.00 | 35.00 | 6H | 90.00 | 22.00 | 3 | 6.80 | DIN 371, C = 2–3×TP |
| T300-KM101DA-M10 | ● | M10 | 1.50 | 10.00 | 10.00 | 39.00 | 6H | 100.00 | 24.00 | 3 | 8.50 | DIN 371, C = 2–3×TP |
| T300-KM105DA-M10 | ● | M10 | 1.50 | 10.00 | 10.00 | 39.00 | 6H | 100.00 | 24.00 | 3 | 8.50 | DIN 371, C = 2–3×TP |
| T300-KM101DA-M12 | ● | M12 | 1.75 | 12.00 | 9.00 | 55.00 | 6H | 110.00 | 23.00 | 3 | 10.20 | DIN 376, C = 2–3×TP |
| T300-KM105DA-M12 | ● | M12 | 1.75 | 12.00 | 9.00 | 55.00 | 6H | 110.00 | 23.00 | 3 | 10.20 | DIN 376, C = 2–3×TP |
● = первый выбор, ○ = хороший выбор.
