Инструменты для развёртывания | CoroReamer® 830

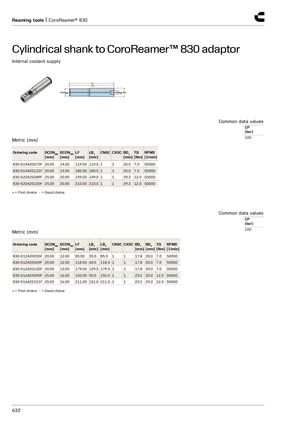

Адаптер с цилиндрическим хвостовиком для CoroReamer™ 830
Внутренний подвод СОЖ
| Общие значения | |
|---|---|
| CP [bar] | 100 |
| Код заказа | DCONMS [mm] | DCONWS [mm] | LF [mm] | LB1 [mm] | CNSC | CXSC | BD1 [mm] | TQ [Nm] | RPMX [1/min] |
|---|---|---|---|---|---|---|---|---|---|
| 830-S14A20070F | 20.00 | 14.00 | 119.50 | 119.5 | 1 | 1 | 20.5 | 7.0 | 50000 |
| 830-S14A20131F | 20.00 | 14.00 | 180.50 | 180.5 | 1 | 1 | 20.5 | 7.0 | 50000 |
| 830-S20A25089F | 25.00 | 20.00 | 149.00 | 149.0 | 1 | 1 | 29.3 | 12.0 | 50000 |
| 830-S20A25150F | 25.00 | 20.00 | 210.00 | 210.0 | 1 | 1 | 29.3 | 12.0 | 50000 |
● = первый выбор ○ = хороший выбор
| Общие значения | |
|---|---|
| CP [bar] | 100 |
| Код заказа | DCONMS [mm] | DCONWS [mm] | LF [mm] | LB1 [mm] | LB2 [mm] | CNSC | CXSC | BD1 [mm] | BD2 [mm] | TQ [Nm] | RPMX [1/min] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 830-S12A20035F | 20.00 | 12.00 | 85.00 | 35.0 | 85.0 | 1 | 1 | 17.8 | 20.0 | 7.0 | 50000 |
| 830-S12A20069F | 20.00 | 12.00 | 118.50 | 68.5 | 118.5 | 1 | 1 | 17.8 | 20.0 | 7.0 | 50000 |
| 830-S12A20130F | 20.00 | 12.00 | 179.50 | 129.5 | 179.5 | 1 | 1 | 17.8 | 20.0 | 7.0 | 50000 |
| 830-S16A25090F | 25.00 | 16.00 | 150.00 | 90.0 | 150.0 | 1 | 1 | 23.2 | 25.0 | 12.0 | 50000 |
| 830-S16A25151F | 25.00 | 16.00 | 211.00 | 151.0 | 211.0 | 1 | 1 | 23.2 | 25.0 | 12.0 | 50000 |
● = первый выбор ○ = хороший выбор
