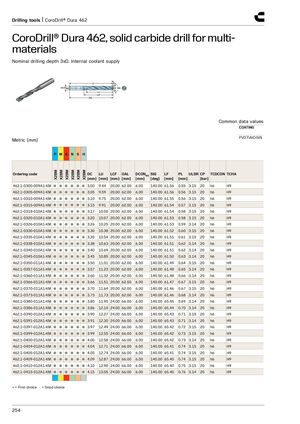

Инструменты для сверления | CoroDrill® Dura 462
CoroDrill® Dura 462, цельнотвердосплавное сверло для мультиматериалов
Номинальная глубина сверления 3xD. Внутренняя подача СОЖ.
Общие значения данных: Покрытие PVD TiAlCrSiN
Метрические (мм)
| Марка | P | M | K | N | S | H |
|---|---|---|---|---|---|---|
| X2BM | ● | ● | ● | ● | ● | ● |
| Код заказа | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | CP [бар] | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0300-009A1-XM | 3.00 | 9.44 | 20.00 | 62.00 | 6.00 | 140.00 | 61.56 | 0.55 | 3.15 | 20 | h6 | H9 |
| 462.1-0305-009A1-XM | 3.05 | 9.59 | 20.00 | 62.00 | 6.00 | 140.00 | 61.56 | 0.56 | 3.15 | 20 | h6 | H9 |
| 462.1-0310-009A1-XM | 3.10 | 9.75 | 20.00 | 62.00 | 6.00 | 140.00 | 61.55 | 0.56 | 3.15 | 20 | h6 | H9 |
| 462.1-0315-009A1-XM | 3.15 | 9.91 | 20.00 | 62.00 | 6.00 | 140.00 | 61.54 | 0.57 | 3.15 | 20 | h6 | H9 |
| 462.1-0318-010A1-XM | 3.17 | 10.00 | 20.00 | 62.00 | 6.00 | 140.00 | 61.54 | 0.58 | 3.15 | 20 | h6 | H9 |
| 462.1-0320-010A1-XM | 3.20 | 10.07 | 20.00 | 62.00 | 6.00 | 140.00 | 61.53 | 0.58 | 3.15 | 20 | h6 | H9 |
| 462.1-0326-010A1-XM | 3.26 | 10.25 | 20.00 | 62.00 | 6.00 | 140.00 | 61.53 | 0.59 | 3.14 | 20 | h6 | H9 |
| 462.1-0330-010A1-XM | 3.30 | 10.38 | 20.00 | 62.00 | 6.00 | 140.00 | 61.52 | 0.60 | 3.15 | 20 | h6 | H9 |
| 462.1-0335-010A1-XM | 3.35 | 10.54 | 20.00 | 62.00 | 6.00 | 140.00 | 61.51 | 0.61 | 3.15 | 20 | h6 | H9 |
| 462.1-0338-010A1-XM | 3.38 | 10.63 | 20.00 | 62.00 | 6.00 | 140.00 | 61.51 | 0.62 | 3.14 | 20 | h6 | H9 |
| 462.1-0340-010A1-XM | 3.40 | 10.69 | 20.00 | 62.00 | 6.00 | 140.00 | 61.51 | 0.62 | 3.14 | 20 | h6 | H9 |
| 462.1-0345-010A1-XM | 3.45 | 10.85 | 20.00 | 62.00 | 6.00 | 140.00 | 61.50 | 0.63 | 3.14 | 20 | h6 | H9 |
| 462.1-0350-011A1-XM | 3.50 | 11.01 | 20.00 | 62.00 | 6.00 | 140.00 | 61.49 | 0.64 | 3.15 | 20 | h6 | H9 |
| 462.1-0357-011A1-XM | 3.57 | 11.23 | 20.00 | 62.00 | 6.00 | 140.00 | 61.48 | 0.65 | 3.14 | 20 | h6 | H9 |
| 462.1-0360-011A1-XM | 3.60 | 11.32 | 20.00 | 62.00 | 6.00 | 140.00 | 61.48 | 0.66 | 3.14 | 20 | h6 | H9 |
| 462.1-0366-011A1-XM | 3.66 | 11.51 | 20.00 | 62.00 | 6.00 | 140.00 | 61.47 | 0.67 | 3.15 | 20 | h6 | H9 |
| 462.1-0370-011A1-XM | 3.70 | 11.64 | 20.00 | 62.00 | 6.00 | 140.00 | 61.46 | 0.67 | 3.15 | 20 | h6 | H9 |
| 462.1-0373-011A1-XM | 3.73 | 11.73 | 20.00 | 62.00 | 6.00 | 140.00 | 61.46 | 0.68 | 3.14 | 20 | h6 | H9 |
| 462.1-0380-011A1-XM | 3.80 | 11.95 | 24.00 | 66.00 | 6.00 | 140.00 | 65.45 | 0.69 | 3.14 | 20 | h6 | H9 |
| 462.1-0386-011A1-XM | 3.86 | 12.14 | 24.00 | 66.00 | 6.00 | 140.00 | 65.44 | 0.70 | 3.14 | 20 | h6 | H9 |
| 462.1-0390-012A1-XM | 3.90 | 12.27 | 24.00 | 66.00 | 6.00 | 140.00 | 65.43 | 0.71 | 3.15 | 20 | h6 | H9 |
| 462.1-0391-012A1-XM | 3.91 | 12.30 | 24.00 | 66.00 | 6.00 | 140.00 | 65.43 | 0.71 | 3.14 | 20 | h6 | H9 |
| 462.1-0397-012A1-XM | 3.97 | 12.49 | 24.00 | 66.00 | 6.00 | 140.00 | 65.42 | 0.72 | 3.15 | 20 | h6 | H9 |
| 462.1-0399-012A1-XM | 3.99 | 12.55 | 24.00 | 66.00 | 6.00 | 140.00 | 65.42 | 0.73 | 3.15 | 20 | h6 | H9 |
| 462.1-0400-012A1-XM | 4.00 | 12.58 | 24.00 | 66.00 | 6.00 | 140.00 | 65.42 | 0.73 | 3.14 | 20 | h6 | H9 |
| 462.1-0404-012A1-XM | 4.04 | 12.71 | 24.00 | 66.00 | 6.00 | 140.00 | 65.41 | 0.74 | 3.15 | 20 | h6 | H9 |
| 462.1-0405-012A1-XM | 4.05 | 12.74 | 24.00 | 66.00 | 6.00 | 140.00 | 65.41 | 0.74 | 3.15 | 20 | h6 | H9 |
| 462.1-0409-012A1-XM | 4.09 | 12.87 | 24.00 | 66.00 | 6.00 | 140.00 | 65.40 | 0.74 | 3.15 | 20 | h6 | H9 |
| 462.1-0410-012A1-XM | 4.10 | 12.90 | 24.00 | 66.00 | 6.00 | 140.00 | 65.40 | 0.75 | 3.15 | 20 | h6 | H9 |
| 462.1-0415-012A1-XM | 4.15 | 13.05 | 24.00 | 66.00 | 6.00 | 140.00 | 65.40 | 0.76 | 3.14 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
