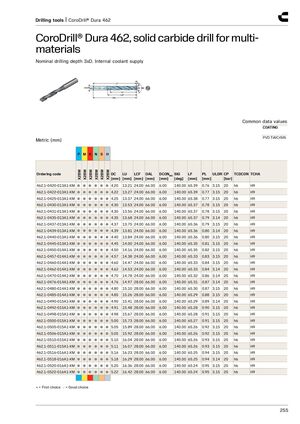

Инструменты для сверления | CoroDrill® Dura 462
CoroDrill® Dura 462, цельнотвердосплавное сверло для мультиматериалов
Номинальная глубина сверления 3xD. Внутренняя подача СОЖ.
Общие значения данных: Покрытие PVD TiAlCrSiN
Метрические (мм)
| Марка | P | M | K | N | S | H |
|---|---|---|---|---|---|---|
| X2BM | ● | ● | ● | ● | ● | ● |
| Код заказа | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | CP [бар] | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0420-013A1-XM | 4.20 | 13.21 | 24.00 | 66.00 | 6.00 | 140.00 | 65.39 | 0.76 | 3.15 | 20 | h6 | H9 |
| 462.1-0422-013A1-XM | 4.22 | 13.27 | 24.00 | 66.00 | 6.00 | 140.00 | 65.39 | 0.77 | 3.15 | 20 | h6 | H9 |
| 462.1-0425-013A1-XM | 4.25 | 13.37 | 24.00 | 66.00 | 6.00 | 140.00 | 65.38 | 0.77 | 3.15 | 20 | h6 | H9 |
| 462.1-0430-013A1-XM | 4.30 | 13.53 | 24.00 | 66.00 | 6.00 | 140.00 | 65.37 | 0.78 | 3.15 | 20 | h6 | H9 |
| 462.1-0431-013A1-XM | 4.30 | 13.56 | 24.00 | 66.00 | 6.00 | 140.00 | 65.37 | 0.78 | 3.15 | 20 | h6 | H9 |
| 462.1-0435-013A1-XM | 4.35 | 13.68 | 24.00 | 66.00 | 6.00 | 140.00 | 65.37 | 0.79 | 3.14 | 20 | h6 | H9 |
| 462.1-0437-013A1-XM | 4.37 | 13.75 | 24.00 | 66.00 | 6.00 | 140.00 | 65.36 | 0.79 | 3.15 | 20 | h6 | H9 |
| 462.1-0439-013A1-XM | 4.39 | 13.81 | 24.00 | 66.00 | 6.00 | 140.00 | 65.36 | 0.80 | 3.14 | 20 | h6 | H9 |
| 462.1-0440-013A1-XM | 4.40 | 13.84 | 24.00 | 66.00 | 6.00 | 140.00 | 65.36 | 0.80 | 3.15 | 20 | h6 | H9 |
| 462.1-0445-013A1-XM | 4.45 | 14.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.35 | 0.81 | 3.15 | 20 | h6 | H9 |
| 462.1-0450-014A1-XM | 4.50 | 14.16 | 24.00 | 66.00 | 6.00 | 140.00 | 65.35 | 0.82 | 3.15 | 20 | h6 | H9 |
| 462.1-0457-014A1-XM | 4.57 | 14.38 | 24.00 | 66.00 | 6.00 | 140.00 | 65.33 | 0.83 | 3.15 | 20 | h6 | H9 |
| 462.1-0460-014A1-XM | 4.60 | 14.47 | 24.00 | 66.00 | 6.00 | 140.00 | 65.33 | 0.84 | 3.15 | 20 | h6 | H9 |
| 462.1-0462-014A1-XM | 4.62 | 14.53 | 24.00 | 66.00 | 6.00 | 140.00 | 65.33 | 0.84 | 3.14 | 20 | h6 | H9 |
| 462.1-0470-014A1-XM | 4.70 | 14.78 | 24.00 | 66.00 | 6.00 | 140.00 | 65.32 | 0.86 | 3.14 | 20 | h6 | H9 |
| 462.1-0476-014A1-XM | 4.76 | 14.97 | 28.00 | 66.00 | 6.00 | 140.00 | 65.31 | 0.87 | 3.14 | 20 | h6 | H9 |
| 462.1-0480-014A1-XM | 4.80 | 15.10 | 28.00 | 66.00 | 6.00 | 140.00 | 65.30 | 0.87 | 3.15 | 20 | h6 | H9 |
| 462.1-0485-014A1-XM | 4.85 | 15.26 | 28.00 | 66.00 | 6.00 | 140.00 | 65.29 | 0.88 | 3.15 | 20 | h6 | H9 |
| 462.1-0490-015A1-XM | 4.90 | 15.41 | 28.00 | 66.00 | 6.00 | 140.00 | 65.29 | 0.89 | 3.14 | 20 | h6 | H9 |
| 462.1-0492-015A1-XM | 4.91 | 15.48 | 28.00 | 66.00 | 6.00 | 140.00 | 65.28 | 0.90 | 3.15 | 20 | h6 | H9 |
| 462.1-0498-015A1-XM | 4.98 | 15.67 | 28.00 | 66.00 | 6.00 | 140.00 | 65.28 | 0.91 | 3.15 | 20 | h6 | H9 |
| 462.1-0500-015A1-XM | 5.00 | 15.73 | 28.00 | 66.00 | 6.00 | 140.00 | 65.27 | 0.91 | 3.15 | 20 | h6 | H9 |
| 462.1-0505-015A1-XM | 5.05 | 15.89 | 28.00 | 66.00 | 6.00 | 140.00 | 65.26 | 0.92 | 3.15 | 20 | h6 | H9 |
| 462.1-0506-015A1-XM | 5.05 | 15.92 | 28.00 | 66.00 | 6.00 | 140.00 | 65.26 | 0.92 | 3.15 | 20 | h6 | H9 |
| 462.1-0510-015A1-XM | 5.10 | 16.04 | 28.00 | 66.00 | 6.00 | 140.00 | 65.26 | 0.93 | 3.15 | 20 | h6 | H9 |
| 462.1-0511-015A1-XM | 5.11 | 16.07 | 28.00 | 66.00 | 6.00 | 140.00 | 65.26 | 0.93 | 3.15 | 20 | h6 | H9 |
| 462.1-0516-016A1-XM | 5.16 | 16.23 | 28.00 | 66.00 | 6.00 | 140.00 | 65.25 | 0.94 | 3.15 | 20 | h6 | H9 |
| 462.1-0518-016A1-XM | 5.18 | 16.29 | 28.00 | 66.00 | 6.00 | 140.00 | 65.25 | 0.94 | 3.14 | 20 | h6 | H9 |
| 462.1-0520-016A1-XM | 5.20 | 16.36 | 28.00 | 66.00 | 6.00 | 140.00 | 65.24 | 0.95 | 3.15 | 20 | h6 | H9 |
| 462.1-0522-016A1-XM | 5.22 | 16.42 | 28.00 | 66.00 | 6.00 | 140.00 | 65.24 | 0.95 | 3.15 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
