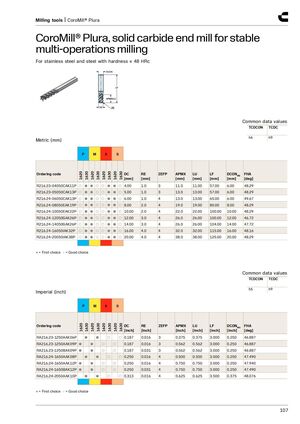

Фрезерный инструмент | CoroMill® Plura
CoroMill® Plura, концевая фреза из твёрдого сплава для стабильного многофункционального фрезерования
Для нержавеющей стали и стали твёрдостью ≤ 48 HRc.
Общие значения параметров
| TCDCON | TCDC |
|---|---|
| h6 | h9 |
Метрическая система (мм)
P 1620/1630, M 1620/1630, K 1620/1630, S 1620/1630
| Код заказа | DC [мм] | RE [мм] | ZEFP | APMX [мм] | LU [мм] | LF [мм] | DCONMS [мм] | FHA [град] |
|---|---|---|---|---|---|---|---|---|
| R216.23-04050CAK11P ○ ● ● ○ ○ ● ● ○ | 4.00 | 1.0 | 3 | 11.0 | 11.00 | 57.00 | 6.00 | 48.29 |
| R216.23-05050CAK13P ○ ● ● ○ ○ ● ● ○ | 5.00 | 1.0 | 3 | 13.0 | 13.00 | 57.00 | 6.00 | 48.29 |
| R216.24-06050CAK13P ○ ● ● ○ ○ ● ● ○ | 6.00 | 1.0 | 4 | 13.0 | 13.00 | 65.00 | 6.00 | 49.67 |
| R216.24-08050EAK19P ○ ● ● ○ ○ ● ● ○ | 8.00 | 2.0 | 4 | 19.0 | 19.00 | 80.00 | 8.00 | 48.29 |
| R216.24-10050EAK22P ○ ● ● ○ ○ ● ● ○ | 10.00 | 2.0 | 4 | 22.0 | 22.00 | 100.00 | 10.00 | 48.29 |
| R216.24-12050GAK26P ○ ● ● ○ ○ ● ● ○ | 12.00 | 3.0 | 4 | 26.0 | 26.00 | 100.00 | 12.00 | 46.72 |
| R216.24-14050GAK26P ○ ● ● ○ ○ ● ● ○ | 14.00 | 3.0 | 4 | 26.0 | 26.00 | 104.00 | 14.00 | 47.72 |
| R216.24-16050IAK32P ○ ● ● ○ ○ ● ● ○ | 16.00 | 4.0 | 4 | 32.0 | 32.00 | 115.00 | 16.00 | 48.16 |
| R216.24-20050IAK38P ○ ● ● ○ ○ ● ● ○ | 20.00 | 4.0 | 4 | 38.0 | 38.00 | 125.00 | 20.00 | 48.29 |
● = Первый выбор ○ = Хороший выбор
Общие значения параметров
| TCDCON | TCDC |
|---|---|
| h6 | h9 |
Дюймовая система (inch)
P 1620/1630, M 1620/1630, K 1620/1630, S 1620/1630
| Код заказа | DC [дюйм] | RE [дюйм] | ZEFP | APMX [дюйм] | LU [дюйм] | LF [дюйм] | DCONMS [дюйм] | FHA [град] |
|---|---|---|---|---|---|---|---|---|
| RA216.23-1250AAK06P ● ● ○ ○ | 0.187 | 0.016 | 3 | 0.375 | 0.375 | 3.000 | 0.250 | 46.887 |
| RA216.23-1250AAK09P ● ● ○ ○ | 0.187 | 0.016 | 3 | 0.562 | 0.562 | 3.000 | 0.250 | 46.887 |
| RA216.23-1250BAK09P ● ● ○ ○ | 0.187 | 0.031 | 3 | 0.562 | 0.562 | 3.000 | 0.250 | 46.887 |
| RA216.24-1650AAK08P ● ● ○ ○ | 0.250 | 0.016 | 4 | 0.500 | 0.500 | 3.000 | 0.250 | 47.490 |
| RA216.24-1650AAK12P ● ● ○ ○ | 0.250 | 0.016 | 4 | 0.750 | 0.750 | 3.000 | 0.250 | 47.940 |
| RA216.24-1650BAK12P ● ● ○ ○ | 0.250 | 0.031 | 4 | 0.750 | 0.750 | 3.000 | 0.250 | 47.490 |
| RA216.24-2050AAK10P ● ● ○ ○ | 0.313 | 0.016 | 4 | 0.625 | 0.625 | 3.500 | 0.375 | 48.076 |
● = Первый выбор ○ = Хороший выбор
