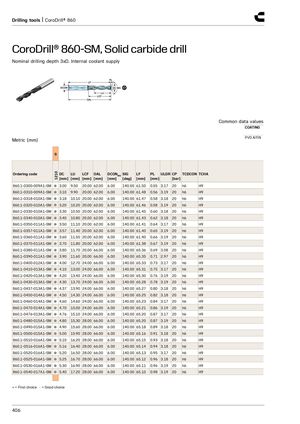

CoroDrill® 860-SM, твердосплавное сверло цельное
Номинальная глубина сверления 3xD. Внутренняя подача СОЖ.
Общие данные
ПОКРЫТИЕ
PVD AlTiN
Метрическая система (мм)
S
1210
| Код заказа | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | CP [бар] | TCDCON | TCHA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ● | 860.1-0300-009A1-SM | 3.00 | 9.50 | 20.00 | 62.00 | 6.00 | 140.00 | 61.50 | 0.55 | 3.17 | 20 | h6 | H9 |
| ● | 860.1-0310-009A1-SM | 3.10 | 9.90 | 20.00 | 62.00 | 6.00 | 140.00 | 61.48 | 0.56 | 3.19 | 20 | h6 | H9 |
| ● | 860.1-0318-010A1-SM | 3.18 | 10.10 | 20.00 | 62.00 | 6.00 | 140.00 | 61.47 | 0.58 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0320-010A1-SM | 3.20 | 10.20 | 20.00 | 62.00 | 6.00 | 140.00 | 61.46 | 0.58 | 3.19 | 20 | h6 | H9 |
| ● | 860.1-0330-010A1-SM | 3.30 | 10.50 | 20.00 | 62.00 | 6.00 | 140.00 | 61.45 | 0.60 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0340-010A1-SM | 3.40 | 10.80 | 20.00 | 62.00 | 6.00 | 140.00 | 61.43 | 0.62 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0350-011A1-SM | 3.50 | 11.10 | 20.00 | 62.00 | 6.00 | 140.00 | 61.41 | 0.64 | 3.17 | 20 | h6 | H9 |
| ● | 860.1-0357-011A1-SM | 3.57 | 11.40 | 20.00 | 62.00 | 6.00 | 140.00 | 61.40 | 0.65 | 3.19 | 20 | h6 | H9 |
| ● | 860.1-0360-011A1-SM | 3.60 | 11.50 | 20.00 | 62.00 | 6.00 | 140.00 | 61.40 | 0.66 | 3.19 | 20 | h6 | H9 |
| ● | 860.1-0370-011A1-SM | 3.70 | 11.80 | 20.00 | 62.00 | 6.00 | 140.00 | 61.38 | 0.67 | 3.19 | 20 | h6 | H9 |
| ● | 860.1-0380-011A1-SM | 3.80 | 11.70 | 20.00 | 66.00 | 6.00 | 140.00 | 65.36 | 0.69 | 3.08 | 20 | h6 | H9 |
| ● | 860.1-0390-011A1-SM | 3.90 | 11.60 | 20.00 | 66.00 | 6.00 | 140.00 | 65.35 | 0.71 | 2.97 | 20 | h6 | H9 |
| ● | 860.1-0400-012A1-SM | 4.00 | 12.70 | 24.00 | 66.00 | 6.00 | 140.00 | 65.33 | 0.73 | 3.17 | 20 | h6 | H9 |
| ● | 860.1-0410-013A1-SM | 4.10 | 13.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.31 | 0.75 | 3.17 | 20 | h6 | H9 |
| ● | 860.1-0420-013A1-SM | 4.20 | 13.40 | 24.00 | 66.00 | 6.00 | 140.00 | 65.30 | 0.76 | 3.19 | 20 | h6 | H9 |
| ● | 860.1-0430-013A1-SM | 4.30 | 13.70 | 24.00 | 66.00 | 6.00 | 140.00 | 65.28 | 0.78 | 3.19 | 20 | h6 | H9 |
| ● | 860.1-0437-013A1-SM | 4.37 | 13.90 | 24.00 | 66.00 | 6.00 | 140.00 | 65.27 | 0.80 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0450-014A1-SM | 4.50 | 14.30 | 24.00 | 66.00 | 6.00 | 140.00 | 65.25 | 0.82 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0460-014A1-SM | 4.60 | 14.60 | 24.00 | 66.00 | 6.00 | 140.00 | 65.23 | 0.84 | 3.17 | 20 | h6 | H9 |
| ● | 860.1-0470-014A1-SM | 4.70 | 15.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.21 | 0.86 | 3.19 | 20 | h6 | H9 |
| ● | 860.1-0476-013A1-SM | 4.76 | 15.10 | 24.00 | 66.00 | 6.00 | 140.00 | 65.20 | 0.87 | 3.17 | 20 | h6 | H9 |
| ● | 860.1-0480-015A1-SM | 4.80 | 15.30 | 28.00 | 66.00 | 6.00 | 140.00 | 65.20 | 0.87 | 3.19 | 20 | h6 | H9 |
| ● | 860.1-0490-015A1-SM | 4.90 | 15.60 | 28.00 | 66.00 | 6.00 | 140.00 | 65.18 | 0.89 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0500-015A1-SM | 5.00 | 15.90 | 28.00 | 66.00 | 6.00 | 140.00 | 65.16 | 0.91 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0510-016A1-SM | 5.10 | 16.20 | 28.00 | 66.00 | 6.00 | 140.00 | 65.15 | 0.93 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0516-016A1-SM | 5.16 | 16.40 | 28.00 | 66.00 | 6.00 | 140.00 | 65.14 | 0.94 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0520-016A1-SM | 5.20 | 16.50 | 28.00 | 66.00 | 6.00 | 140.00 | 65.13 | 0.95 | 3.17 | 20 | h6 | H9 |
| ● | 860.1-0525-016A1-SM | 5.25 | 16.70 | 28.00 | 66.00 | 6.00 | 140.00 | 65.12 | 0.96 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0530-016A1-SM | 5.30 | 16.90 | 28.00 | 66.00 | 6.00 | 140.00 | 65.11 | 0.96 | 3.19 | 20 | h6 | H9 |
| ● | 860.1-0540-017A1-SM | 5.40 | 17.20 | 28.00 | 66.00 | 6.00 | 140.00 | 65.10 | 0.98 | 3.19 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
