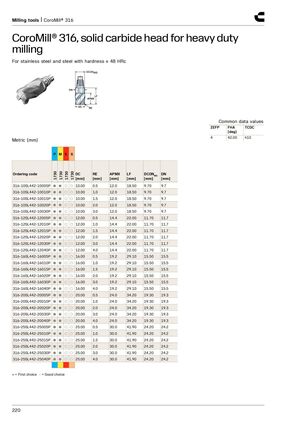

Фрезерные инструменты | CoroMill® 316
CoroMill® 316, твердосплавная головка для тяжёлого фрезерования
Для нержавеющей стали и стали твёрдостью ≤ 48 HRc
Общие значения данных
| ZEFP | FHA [deg] | TCDC |
|---|---|---|
| 4 | 42.00 | h10 |
Метрическая система (мм)
| Код заказа | P | M | K | S | DC [мм] | RE [мм] | APMX [мм] | LF [мм] | DCONMS [мм] | DN [мм] |
|---|---|---|---|---|---|---|---|---|---|---|
| 316-10SL442-10005P | ● | ● | ○ | ○ | 10.00 | 0.5 | 12.0 | 18.50 | 9.70 | 9.7 |
| 316-10SL442-10010P | ● | ● | ○ | ○ | 10.00 | 1.0 | 12.0 | 18.50 | 9.70 | 9.7 |
| 316-10SL442-10015P | ● | ● | ○ | ○ | 10.00 | 1.5 | 12.0 | 18.50 | 9.70 | 9.7 |
| 316-10SL442-10020P | ● | ● | ○ | ○ | 10.00 | 2.0 | 12.0 | 18.50 | 9.70 | 9.7 |
| 316-10SL442-10030P | ● | ● | ○ | ○ | 10.00 | 3.0 | 12.0 | 18.50 | 9.70 | 9.7 |
| 316-12SL442-12005P | ● | ● | ○ | ○ | 12.00 | 0.5 | 14.4 | 22.00 | 11.70 | 11.7 |
| 316-12SL442-12010P | ● | ● | ○ | ○ | 12.00 | 1.0 | 14.4 | 22.00 | 11.70 | 11.7 |
| 316-12SL442-12015P | ● | ● | ○ | ○ | 12.00 | 1.5 | 14.4 | 22.00 | 11.70 | 11.7 |
| 316-12SL442-12020P | ● | ● | ○ | ○ | 12.00 | 2.0 | 14.4 | 22.00 | 11.70 | 11.7 |
| 316-12SL442-12030P | ● | ● | ○ | ○ | 12.00 | 3.0 | 14.4 | 22.00 | 11.70 | 11.7 |
| 316-12SL442-12040P | ● | ● | ○ | ○ | 12.00 | 4.0 | 14.4 | 22.00 | 11.70 | 11.7 |
| 316-16SL442-16005P | ● | ● | ○ | ○ | 16.00 | 0.5 | 19.2 | 29.10 | 15.50 | 15.5 |
| 316-16SL442-16010P | ● | ● | ○ | ○ | 16.00 | 1.0 | 19.2 | 29.10 | 15.50 | 15.5 |
| 316-16SL442-16015P | ● | ● | ○ | ○ | 16.00 | 1.5 | 19.2 | 29.10 | 15.50 | 15.5 |
| 316-16SL442-16020P | ● | ● | ○ | ○ | 16.00 | 2.0 | 19.2 | 29.10 | 15.50 | 15.5 |
| 316-16SL442-16030P | ● | ● | ○ | ○ | 16.00 | 3.0 | 19.2 | 29.10 | 15.50 | 15.5 |
| 316-16SL442-16040P | ● | ● | ○ | ○ | 16.00 | 4.0 | 19.2 | 29.10 | 15.50 | 15.5 |
| 316-20SL442-20005P | ● | ● | ○ | ○ | 20.00 | 0.5 | 24.0 | 34.20 | 19.30 | 19.3 |
| 316-20SL442-20010P | ● | ● | ○ | ○ | 20.00 | 1.0 | 24.0 | 34.20 | 19.30 | 19.3 |
| 316-20SL442-20020P | ● | ● | ○ | ○ | 20.00 | 2.0 | 24.0 | 34.20 | 19.30 | 19.3 |
| 316-20SL442-20030P | ● | ● | ○ | ○ | 20.00 | 3.0 | 24.0 | 34.20 | 19.30 | 19.3 |
| 316-20SL442-20040P | ● | ● | ○ | ○ | 20.00 | 4.0 | 24.0 | 34.20 | 19.30 | 19.3 |
| 316-25SL442-25005P | ● | ● | ○ | ○ | 25.00 | 0.5 | 30.0 | 41.90 | 24.20 | 24.2 |
| 316-25SL442-25010P | ● | ● | ○ | ○ | 25.00 | 1.0 | 30.0 | 41.90 | 24.20 | 24.2 |
| 316-25SL442-25015P | ● | ● | ○ | ○ | 25.00 | 1.5 | 30.0 | 41.90 | 24.20 | 24.2 |
| 316-25SL442-25020P | ● | ● | ○ | ○ | 25.00 | 2.0 | 30.0 | 41.90 | 24.20 | 24.2 |
| 316-25SL442-25030P | ● | ● | ○ | ○ | 25.00 | 3.0 | 30.0 | 41.90 | 24.20 | 24.2 |
| 316-25SL442-25040P | ● | ● | ○ | ○ | 25.00 | 4.0 | 30.0 | 41.90 | 24.20 | 24.2 |
● = Первый выбор ○ = Хороший выбор
