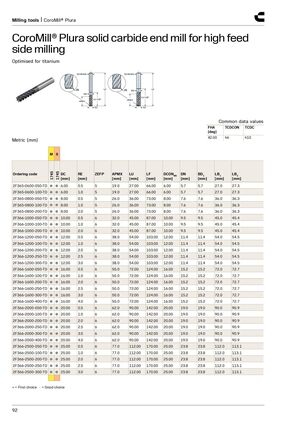

Инструменты для фрезерования | CoroMill® Plura
CoroMill® Plura, концевая фреза из цельного твёрдого сплава для бокового фрезерования с высокой подачей
Оптимизирована для титана.
Общие значения данных
| FHA [deg] | TCDCON | TCDC |
|---|---|---|
| 42.00 | h6 | h10 |
Метрическая система (мм), M S 1745
| Код заказа | DC [мм] | RE [мм] | ZEFP | APMX [мм] | LU [мм] | LF [мм] | DCONMS [мм] | DN [мм] | BD1_ [мм] | LB1_ [мм] | LB2_ [мм] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2F365-0600-050-TD ● ● | 6.00 | 0.5 | 5 | 19.0 | 27.00 | 66.00 | 6.00 | 5.7 | 5.7 | 27.0 | 27.3 |
| 2F365-0600-100-TD ● ● | 6.00 | 1.0 | 5 | 19.0 | 27.00 | 66.00 | 6.00 | 5.7 | 5.7 | 27.0 | 27.3 |
| 2F365-0800-050-TD ● ● | 8.00 | 0.5 | 5 | 26.0 | 36.00 | 73.00 | 8.00 | 7.6 | 7.6 | 36.0 | 36.3 |
| 2F365-0800-100-TD ● ● | 8.00 | 1.0 | 5 | 26.0 | 36.00 | 73.00 | 8.00 | 7.6 | 7.6 | 36.0 | 36.3 |
| 2F365-0800-200-TD ● ● | 8.00 | 2.0 | 5 | 26.0 | 36.00 | 73.00 | 8.00 | 7.6 | 7.6 | 36.0 | 36.3 |
| 2F366-1000-050-TD ● ● | 10.00 | 0.5 | 6 | 32.0 | 45.00 | 87.00 | 10.00 | 9.5 | 9.5 | 45.0 | 45.4 |
| 2F366-1000-100-TD ● ● | 10.00 | 1.0 | 6 | 32.0 | 45.00 | 87.00 | 10.00 | 9.5 | 9.5 | 45.0 | 45.4 |
| 2F366-1000-200-TD ● ● | 10.00 | 2.0 | 6 | 32.0 | 45.00 | 87.00 | 10.00 | 9.5 | 9.5 | 45.0 | 45.4 |
| 2F366-1200-050-TD ● ● | 12.00 | 0.5 | 6 | 38.0 | 54.00 | 103.00 | 12.00 | 11.4 | 11.4 | 54.0 | 54.5 |
| 2F366-1200-100-TD ● ● | 12.00 | 1.0 | 6 | 38.0 | 54.00 | 103.00 | 12.00 | 11.4 | 11.4 | 54.0 | 54.5 |
| 2F366-1200-200-TD ● ● | 12.00 | 2.0 | 6 | 38.0 | 54.00 | 103.00 | 12.00 | 11.4 | 11.4 | 54.0 | 54.5 |
| 2F366-1200-250-TD ● ● | 12.00 | 2.5 | 6 | 38.0 | 54.00 | 103.00 | 12.00 | 11.4 | 11.4 | 54.0 | 54.5 |
| 2F366-1200-300-TD ● ● | 12.00 | 3.0 | 6 | 38.0 | 54.00 | 103.00 | 12.00 | 11.4 | 11.4 | 54.0 | 54.5 |
| 2F366-1600-050-TD ● ● | 16.00 | 0.5 | 6 | 50.0 | 72.00 | 124.00 | 16.00 | 15.2 | 15.2 | 72.0 | 72.7 |
| 2F366-1600-100-TD ● ● | 16.00 | 1.0 | 6 | 50.0 | 72.00 | 124.00 | 16.00 | 15.2 | 15.2 | 72.0 | 72.7 |
| 2F366-1600-200-TD ● ● | 16.00 | 2.0 | 6 | 50.0 | 72.00 | 124.00 | 16.00 | 15.2 | 15.2 | 72.0 | 72.7 |
| 2F366-1600-250-TD ● ● | 16.00 | 2.5 | 6 | 50.0 | 72.00 | 124.00 | 16.00 | 15.2 | 15.2 | 72.0 | 72.7 |
| 2F366-1600-300-TD ● ● | 16.00 | 3.0 | 6 | 50.0 | 72.00 | 124.00 | 16.00 | 15.2 | 15.2 | 72.0 | 72.7 |
| 2F366-1600-400-TD ● ● | 16.00 | 4.0 | 6 | 50.0 | 72.00 | 124.00 | 16.00 | 15.2 | 15.2 | 72.0 | 72.7 |
| 2F366-2000-050-TD ● ● | 20.00 | 0.5 | 6 | 62.0 | 90.00 | 142.00 | 20.00 | 19.0 | 19.0 | 90.0 | 90.9 |
| 2F366-2000-100-TD ● ● | 20.00 | 1.0 | 6 | 62.0 | 90.00 | 142.00 | 20.00 | 19.0 | 19.0 | 90.0 | 90.9 |
| 2F366-2000-200-TD ● ● | 20.00 | 2.0 | 6 | 62.0 | 90.00 | 142.00 | 20.00 | 19.0 | 19.0 | 90.0 | 90.9 |
| 2F366-2000-250-TD ● ● | 20.00 | 2.5 | 6 | 62.0 | 90.00 | 142.00 | 20.00 | 19.0 | 19.0 | 90.0 | 90.9 |
| 2F366-2000-300-TD ● ● | 20.00 | 3.0 | 6 | 62.0 | 90.00 | 142.00 | 20.00 | 19.0 | 19.0 | 90.0 | 90.9 |
| 2F366-2000-400-TD ● ● | 20.00 | 4.0 | 6 | 62.0 | 90.00 | 142.00 | 20.00 | 19.0 | 19.0 | 90.0 | 90.9 |
| 2F366-2500-050-TD ● ● | 25.00 | 0.5 | 6 | 77.0 | 112.00 | 170.00 | 25.00 | 23.8 | 23.8 | 112.0 | 113.1 |
| 2F366-2500-100-TD ● ● | 25.00 | 1.0 | 6 | 77.0 | 112.00 | 170.00 | 25.00 | 23.8 | 23.8 | 112.0 | 113.1 |
| 2F366-2500-200-TD ● ● | 25.00 | 2.0 | 6 | 77.0 | 112.00 | 170.00 | 25.00 | 23.8 | 23.8 | 112.0 | 113.1 |
| 2F366-2500-250-TD ● ● | 25.00 | 2.5 | 6 | 77.0 | 112.00 | 170.00 | 25.00 | 23.8 | 23.8 | 112.0 | 113.1 |
| 2F366-2500-300-TD ● ● | 25.00 | 3.0 | 6 | 77.0 | 112.00 | 170.00 | 25.00 | 23.8 | 23.8 | 112.0 | 113.1 |
● = Первый выбор ○ = Хороший выбор
