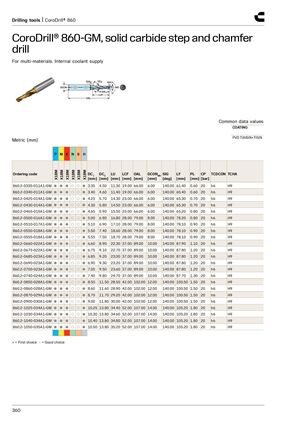

Инструменты для сверления | CoroDrill® 860
CoroDrill® 860-GM, сверло из твёрдого сплава со ступенью и фаской
Для различных материалов. Внутренняя подача СОЖ.
Общие значения данных
Покрытие: PVD TiAlSiN+TiSiN
Метрическая система (мм). Группы обрабатываемых материалов: P M K N S H, вариант X1BM.
| Код заказа | P | M | K | N | S | H | DC1 [мм] | DC2 [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | CP [бар] | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.2-0335-011A1-GM | ● | ● | ● | ○ | ○ | ● | 3.35 | 4.50 | 11.30 | 19.00 | 66.00 | 6.00 | 140.00 | 61.40 | 0.60 | 20 | h6 | H9 |
| 860.2-0340-011A1-GM | ● | ● | ● | ○ | ○ | ● | 3.40 | 4.60 | 11.40 | 19.00 | 66.00 | 6.00 | 140.00 | 65.40 | 0.60 | 20 | h6 | H9 |
| 860.2-0425-014A1-GM | ● | ● | ● | ○ | ○ | ● | 4.25 | 5.70 | 14.30 | 23.00 | 66.00 | 6.00 | 140.00 | 65.30 | 0.70 | 20 | h6 | H9 |
| 860.2-0430-014A1-GM | ● | ● | ● | ○ | ○ | ● | 4.30 | 5.80 | 14.50 | 23.00 | 66.00 | 6.00 | 140.00 | 65.30 | 0.70 | 20 | h6 | H9 |
| 860.2-0465-015A1-GM | ● | ● | ● | ○ | ○ | ● | 4.65 | 5.90 | 15.50 | 23.00 | 66.00 | 6.00 | 140.00 | 65.20 | 0.80 | 20 | h6 | H9 |
| 860.2-0500-016A1-GM | ● | ● | ● | ○ | ○ | ● | 5.00 | 6.80 | 16.80 | 28.00 | 79.00 | 8.00 | 140.00 | 78.20 | 0.80 | 20 | h6 | H9 |
| 860.2-0510-017A1-GM | ● | ● | ● | ○ | ○ | ● | 5.10 | 6.90 | 17.10 | 28.00 | 79.00 | 8.00 | 140.00 | 78.10 | 0.90 | 20 | h6 | H9 |
| 860.2-0550-018A1-GM | ● | ● | ● | ○ | ○ | ● | 5.50 | 7.40 | 18.60 | 28.00 | 79.00 | 8.00 | 140.00 | 78.10 | 0.90 | 20 | h6 | H9 |
| 860.2-0555-018A1-GM | ● | ● | ● | ○ | ○ | ● | 5.55 | 7.50 | 18.70 | 28.00 | 79.00 | 8.00 | 140.00 | 78.10 | 0.90 | 20 | h6 | H9 |
| 860.2-0660-022A1-GM | ● | ● | ● | ○ | ○ | ● | 6.60 | 8.90 | 22.30 | 37.00 | 89.00 | 10.00 | 140.00 | 87.90 | 1.10 | 20 | h6 | H9 |
| 860.2-0675-022A1-GM | ● | ● | ● | ○ | ○ | ● | 6.75 | 9.10 | 22.70 | 37.00 | 89.00 | 10.00 | 140.00 | 87.80 | 1.20 | 20 | h6 | H9 |
| 860.2-0685-023A1-GM | ● | ● | ● | ○ | ○ | ● | 6.85 | 9.20 | 23.00 | 37.00 | 89.00 | 10.00 | 140.00 | 87.80 | 1.20 | 20 | h6 | H9 |
| 860.2-0690-023A1-GM | ● | ● | ● | ○ | ○ | ● | 6.90 | 9.30 | 23.20 | 37.00 | 89.00 | 10.00 | 140.00 | 87.80 | 1.20 | 20 | h6 | H9 |
| 860.2-0700-023A1-GM | ● | ● | ● | ○ | ○ | ● | 7.00 | 9.50 | 23.60 | 37.00 | 89.00 | 10.00 | 140.00 | 87.80 | 1.20 | 20 | h6 | H9 |
| 860.2-0740-024A1-GM | ● | ● | ● | ○ | ○ | ● | 7.40 | 9.80 | 24.70 | 37.00 | 89.00 | 10.00 | 140.00 | 87.70 | 1.30 | 20 | h6 | H9 |
| 860.2-0850-028A1-GM | ● | ● | ● | ○ | ○ | ● | 8.50 | 11.50 | 28.50 | 42.00 | 102.00 | 12.00 | 140.00 | 100.50 | 1.50 | 20 | h6 | H9 |
| 860.2-0860-028A1-GM | ● | ● | ● | ○ | ○ | ● | 8.60 | 11.60 | 28.90 | 42.00 | 102.00 | 12.00 | 140.00 | 100.50 | 1.50 | 20 | h6 | H9 |
| 860.2-0870-029A1-GM | ● | ● | ● | ○ | ○ | ● | 8.70 | 11.70 | 29.20 | 42.00 | 102.00 | 12.00 | 140.00 | 100.50 | 1.50 | 20 | h6 | H9 |
| 860.2-0900-030A1-GM | ● | ● | ● | ○ | ○ | ● | 9.00 | 11.80 | 30.00 | 42.00 | 102.00 | 12.00 | 140.00 | 100.50 | 1.50 | 20 | h6 | H9 |
| 860.2-1025-034A1-GM | ● | ● | ● | ○ | ○ | ● | 10.25 | 13.80 | 34.40 | 52.00 | 107.00 | 14.00 | 140.00 | 105.20 | 1.80 | 20 | h6 | H9 |
| 860.2-1030-034A1-GM | ● | ● | ● | ○ | ○ | ● | 10.30 | 13.80 | 34.60 | 52.00 | 107.00 | 14.00 | 140.00 | 105.20 | 1.80 | 20 | h6 | H9 |
| 860.2-1040-034A1-GM | ● | ● | ● | ○ | ○ | ● | 10.40 | 13.80 | 34.80 | 52.00 | 107.00 | 14.00 | 140.00 | 105.20 | 1.80 | 20 | h6 | H9 |
| 860.2-1050-035A1-GM | ● | ● | ● | ○ | ○ | ● | 10.50 | 13.80 | 35.20 | 52.00 | 107.00 | 14.00 | 140.00 | 105.20 | 1.80 | 20 | h6 | H9 |
● — первый выбор, ○ — хороший выбор
