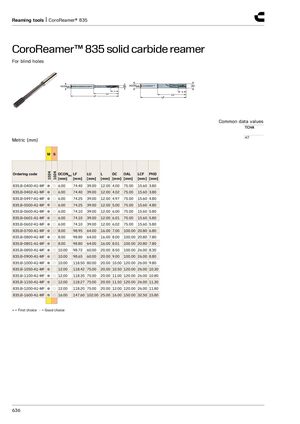

Инструменты для развёртывания | CoroReamer® 835
Твердосплавная цельная развёртка CoroReamer™ 835
Для глухих отверстий
| Общие значения | |
|---|---|
| TCHA | H7 |
| Metric (mm) | M | S |
|---|---|---|
| 1024 | 1024 |
| Код заказа | M | S | DCONMS | LF [mm] | LU [mm] | L [mm] | DC [mm] | OAL [mm] | LCF [mm] | PHD [mm] |
|---|---|---|---|---|---|---|---|---|---|---|
| 835.B-0400-A1-MF | ● | ○ | 6.00 | 74.40 | 39.00 | 12.00 | 4.00 | 75.00 | 15.60 | 3.80 |
| 835.B-0402-A1-MF | ● | ○ | 6.00 | 74.40 | 39.00 | 12.00 | 4.02 | 75.00 | 15.60 | 3.80 |
| 835.B-0497-A1-MF | ● | ○ | 6.00 | 74.25 | 39.00 | 12.00 | 4.97 | 75.00 | 15.60 | 4.80 |
| 835.B-0500-A1-MF | ● | ○ | 6.00 | 74.25 | 39.00 | 12.00 | 5.00 | 75.00 | 15.60 | 4.80 |
| 835.B-0600-A1-MF | ● | ○ | 6.00 | 74.10 | 39.00 | 12.00 | 6.00 | 75.00 | 15.60 | 5.80 |
| 835.B-0601-A1-MF | ● | ○ | 6.00 | 74.10 | 39.00 | 12.00 | 6.01 | 75.00 | 15.60 | 5.80 |
| 835.B-0602-A1-MF | ● | ○ | 6.00 | 74.10 | 39.00 | 12.00 | 6.02 | 75.00 | 15.60 | 5.80 |
| 835.B-0700-A1-MF | ● | ○ | 8.00 | 98.95 | 64.00 | 16.00 | 7.00 | 100.00 | 20.80 | 6.80 |
| 835.B-0800-A1-MF | ● | ○ | 8.00 | 98.80 | 64.00 | 16.00 | 8.00 | 100.00 | 20.80 | 7.80 |
| 835.B-0801-A1-MF | ● | ○ | 8.00 | 98.80 | 64.00 | 16.00 | 8.01 | 100.00 | 20.80 | 7.80 |
| 835.B-0850-A1-MF | ● | ○ | 10.00 | 98.72 | 60.00 | 20.00 | 8.50 | 100.00 | 26.00 | 8.30 |
| 835.B-0900-A1-MF | ● | ○ | 10.00 | 98.65 | 60.00 | 20.00 | 9.00 | 100.00 | 26.00 | 8.80 |
| 835.B-1000-A1-MF | ● | ○ | 10.00 | 118.50 | 80.00 | 20.00 | 10.00 | 120.00 | 26.00 | 9.80 |
| 835.B-1050-A1-MF | ● | 12.00 | 118.42 | 75.00 | 20.00 | 10.50 | 120.00 | 26.00 | 10.30 | |
| 835.B-1100-A1-MF | ● | ○ | 12.00 | 118.35 | 75.00 | 20.00 | 11.00 | 120.00 | 26.00 | 10.80 |
| 835.B-1150-A1-MF | ● | ○ | 12.00 | 118.27 | 75.00 | 20.00 | 11.50 | 120.00 | 26.00 | 11.30 |
| 835.B-1200-A1-MF | ● | ○ | 12.00 | 118.20 | 75.00 | 20.00 | 12.00 | 120.00 | 26.00 | 11.80 |
| 835.B-1600-A1-MF | ● | ○ | 16.00 | 147.60 | 102.00 | 25.00 | 16.00 | 150.00 | 32.50 | 15.80 |
● = первый выбор ○ = хороший выбор
