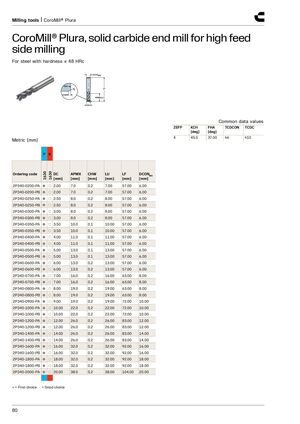

Инструменты для фрезерования | CoroMill® Plura
CoroMill® Plura, концевая фреза из цельного твёрдого сплава для бокового фрезерования с высокой подачей
Для стали твёрдостью ≤ 48 HRc.
Общие значения данных
| ZEFP | KCH [deg] | FHA [deg] | TCDCON | TCDC |
|---|---|---|---|---|
| 4 | 45.0 | 37.00 | h6 | h10 |
Метрическая система (мм), P K 1630
| Код заказа | DC [мм] | APMX [мм] | CHW [мм] | LU [мм] | LF [мм] | DCONMS [мм] |
|---|---|---|---|---|---|---|
| 2P340-0200-PA ● ○ | 2.00 | 7.0 | 0.2 | 7.00 | 57.00 | 6.00 |
| 2P340-0200-PB ● ○ | 2.00 | 7.0 | 0.2 | 7.00 | 57.00 | 6.00 |
| 2P340-0250-PA ● ○ | 2.50 | 8.0 | 0.2 | 8.00 | 57.00 | 6.00 |
| 2P340-0250-PB ● ○ | 2.50 | 8.0 | 0.2 | 8.00 | 57.00 | 6.00 |
| 2P340-0300-PA ● ○ | 3.00 | 8.0 | 0.2 | 8.00 | 57.00 | 6.00 |
| 2P340-0300-PB ● ○ | 3.00 | 8.0 | 0.2 | 8.00 | 57.00 | 6.00 |
| 2P340-0350-PA ● ○ | 3.50 | 10.0 | 0.1 | 10.00 | 57.00 | 6.00 |
| 2P340-0350-PB ● ○ | 3.50 | 10.0 | 0.1 | 10.00 | 57.00 | 6.00 |
| 2P340-0400-PA ● ○ | 4.00 | 11.0 | 0.1 | 11.00 | 57.00 | 6.00 |
| 2P340-0400-PB ● ○ | 4.00 | 11.0 | 0.1 | 11.00 | 57.00 | 6.00 |
| 2P340-0500-PA ● ○ | 5.00 | 13.0 | 0.1 | 13.00 | 57.00 | 6.00 |
| 2P340-0500-PB ● ○ | 5.00 | 13.0 | 0.1 | 13.00 | 57.00 | 6.00 |
| 2P340-0600-PA ● ○ | 6.00 | 13.0 | 0.2 | 13.00 | 57.00 | 6.00 |
| 2P340-0600-PB ● ○ | 6.00 | 13.0 | 0.2 | 13.00 | 57.00 | 6.00 |
| 2P340-0700-PA ● ○ | 7.00 | 16.0 | 0.2 | 16.00 | 63.00 | 8.00 |
| 2P340-0700-PB ● ○ | 7.00 | 16.0 | 0.2 | 16.00 | 63.00 | 8.00 |
| 2P340-0800-PA ● ○ | 8.00 | 19.0 | 0.2 | 19.00 | 63.00 | 8.00 |
| 2P340-0800-PB ● ○ | 8.00 | 19.0 | 0.2 | 19.00 | 63.00 | 8.00 |
| 2P340-0900-PA ● ○ | 9.00 | 19.0 | 0.2 | 19.00 | 72.00 | 10.00 |
| 2P340-1000-PA ● ○ | 10.00 | 22.0 | 0.2 | 22.00 | 72.00 | 10.00 |
| 2P340-1000-PB ● ○ | 10.00 | 22.0 | 0.2 | 22.00 | 72.00 | 10.00 |
| 2P340-1200-PA ● ○ | 12.00 | 26.0 | 0.2 | 26.00 | 83.00 | 12.00 |
| 2P340-1200-PB ● ○ | 12.00 | 26.0 | 0.2 | 26.00 | 83.00 | 12.00 |
| 2P340-1400-PA ● ○ | 14.00 | 26.0 | 0.2 | 26.00 | 83.00 | 14.00 |
| 2P340-1400-PB ● ○ | 14.00 | 26.0 | 0.2 | 26.00 | 83.00 | 14.00 |
| 2P340-1600-PA ● ○ | 16.00 | 32.0 | 0.2 | 32.00 | 92.00 | 16.00 |
| 2P340-1600-PB ● ○ | 16.00 | 32.0 | 0.2 | 32.00 | 92.00 | 16.00 |
| 2P340-1800-PA ● ○ | 18.00 | 32.0 | 0.2 | 32.00 | 92.00 | 18.00 |
| 2P340-1800-PB ● ○ | 18.00 | 32.0 | 0.2 | 32.00 | 92.00 | 18.00 |
| 2P340-2000-PA ● ○ | 20.00 | 38.0 | 0.2 | 38.00 | 104.00 | 20.00 |
● = Первый выбор ○ = Хороший выбор
