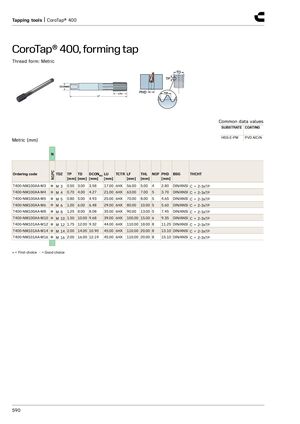

Инструменты для нарезания резьбы | CoroTap® 400
CoroTap® 400, формообразующий метчик
Форма резьбы: метрическая
Общие значения
| SUBSTRATE | COATING |
|---|---|
| HSS-E-PM | PVD AlCrN |
Метрическая (мм)
| Ordering code | N | DCONMS | TDZ [mm] | TP [mm] | TD [mm] | LU [mm] | TCTR | LF [mm] | THL [mm] | NOF | PHD [mm] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T400-NM100AA-M3 | ● | M 3 | 0.50 | 3.00 | 3.58 | 17.00 | 6HX | 56.00 | 5.00 | 4 | 2.80 | DIN/ANSI | C = 2-3xTP |
| T400-NM100AA-M4 | ● | M 4 | 0.70 | 4.00 | 4.27 | 21.00 | 6HX | 63.00 | 7.00 | 5 | 3.70 | DIN/ANSI | C = 2-3xTP |
| T400-NM100AA-M5 | ● | M 5 | 0.80 | 5.00 | 4.93 | 25.00 | 6HX | 70.00 | 8.00 | 5 | 4.65 | DIN/ANSI | C = 2-3xTP |
| T400-NM100AA-M6 | ● | M 6 | 1.00 | 6.00 | 6.48 | 29.00 | 6HX | 80.00 | 10.00 | 5 | 5.60 | DIN/ANSI | C = 2-3xTP |
| T400-NM100AA-M8 | ● | M 8 | 1.25 | 8.00 | 8.08 | 35.00 | 6HX | 90.00 | 13.00 | 5 | 7.45 | DIN/ANSI | C = 2-3xTP |
| T400-NM100AA-M10 | ● | M 10 | 1.50 | 10.00 | 9.68 | 39.00 | 6HX | 100.00 | 15.00 | 6 | 9.35 | DIN/ANSI | C = 2-3xTP |
| T400-NM101AA-M12 | ● | M 12 | 1.75 | 12.00 | 9.32 | 44.00 | 6HX | 110.00 | 18.00 | 8 | 11.25 | DIN/ANSI | C = 2-3xTP |
| T400-NM101AA-M14 | ● | M 14 | 2.00 | 14.00 | 10.90 | 45.00 | 6HX | 110.00 | 20.00 | 8 | 13.10 | DIN/ANSI | C = 2-3xTP |
| T400-NM101AA-M16 | ● | M 16 | 2.00 | 16.00 | 12.19 | 45.00 | 6HX | 110.00 | 20.00 | 8 | 15.10 | DIN/ANSI | C = 2-3xTP |
● = Первый выбор ○ = Хороший выбор
