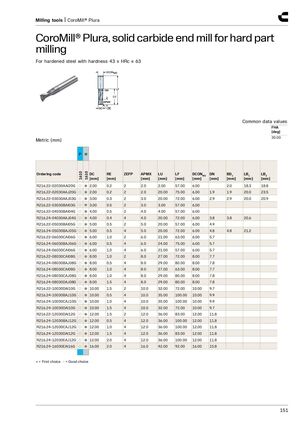

Каталог цельного осевого инструмента Sandvik 2026 - страница 155
Навигация
Дополнение к каталогам Sandvik 2020.2
Каталог Sandvik новые режущие инструменты 2020.1
Дополнение к каталогам Sandvik 2021.1
Каталог Sandvik цельный режущий инструмент 2020
Каталог Sandvik точение материалов высокой твердости- Selection guide
- Milling tools
- CoroMill® Dura
- CoroMill® Dura, solid carbide end mill for general machining
- CoroMill® Dura, solid carbide ball nose end mill for profiling
- CoroMill® Dura, solid carbide end mill for chamfer milling
- CoroMill® Plura
- CoroMill® Plura, solid carbide end mill for heavy duty milling
- CoroMill® Plura, solid carbide end mill for high feed side milling
- CoroMill® Plura solid carbide end mill for high feed side milling
- CoroMill® Plura, solid carbide end mill for high feed side milling
- CoroMill® Plura, solid carbide end mill for edging applications
- CoroMill® Plura, solid carbide end mill for stable multi-operations milling
- CoroMill® Plura, solid carbide end mill for finishing
- CoroMill® Plura, solid carbide end mill for large chip removal
- CoroMill® Plura, solid carbide end mill for high feed face milling
- CoroMill® Plura, solid carbide end mill for plunging
- CoroMill® Plura, solid carbide end mill for roughing with chip breaker
- CoroMill® Plura, solid carbide end mill for hard part milling
- CoroMill® Plura, solid carbide end mill for turn milling
- CoroMill® Plura, solid carbide end mill for micro-milling
- CoroMill® Plura, solid ceramic face mill
- CoroMill® Plura, solid ceramic end mill for high speed roughing
- CoroMill® Plura ball nose, solid carbide end mill for profiling
- CoroMill® Plura lollipop, solid carbide end mill for profiling
- CoroMill® Plura conical ball nose, solid carbide end mill for profiling
- CoroMill® Plura barrel, solid carbide end mill for profiling
- CoroMill® Plura, solid carbide ball nose end mill for profiling
- CoroMill® Plura, solid carbide ball nose end mill for micro-milling
- CoroMill® 316
- CoroMill® 316, solid carbide head for heavy duty milling
- CoroMill® 316, solid carbide head for stable multi-operation milling
- CoroMill® 316, solid carbide head for high feed side milling
- CoroMill® 316, solid carbide head for finishing
- CoroMill® 316, solid carbide head for high feed face milling
- CoroMill® 316, solid carbide head for high chip load milling
- CoroMill® 316, solid carbide head for large chip removal
- CoroMill® 316, solid carbide head for roughing with chip breaker
- CoroMill® 316, solid carbide head for profiling
- CoroMill® 316, solid carbide head for chamfer milling
- CoroMill® 316, solid carbide head with quarter circle profile
- CoroMill® 316, brazed ceramic head for high speed roughing
- Drilling tools
- CoroDrill® Dura 462
- CoroDrill® Dura 462, solid carbide step and chamfer drill for multi-materials
- CoroDrill® Dura 462, solid carbide drill for multi-materials
- CoroDrill® Dura 462, solid carbide micro drill for multi-materials
- CoroDrill® 860
- CoroDrill® 860-MM, solid carbide drill for ISO-M
- CoroDrill® 860-SD, solid carbide drill for ISO-S
- CoroDrill® 860-GM, solid carbide step and chamfer drill
- CoroDrill® 860-GM, solid carbide drill
- CoroDrill® 860-PM, solid carbide step and chamfer drill
- CoroDrill® 860-PM, solid carbide drill
- CoroDrill® 860-SM, Solid carbide drill
- CoroDrill® 860-NM, solid carbide drill
- CoroDrill® 862
- CoroDrill® 862-GM, solid carbide micro drill
- CoroDrill® 862-GM, solid carbide micro drill for pilot holes
- Tapping tools
- CoroTap® 100
- CoroTap® 100, cutting tap with straight flutes
- CoroTap® 200
- CoroTap® 200, cutting tap with spiral point
- CoroTap® 300
- CoroTap® 300, cutting tap with spiral flutes
- CoroTap® 400
- CoroTap® 400, forming tap
- Reaming tools
- CoroReamer® 435
- CoroReamer™ 435 solid carbide reamer
- CoroReamer® 830
- CoroReamer™ 830 solid carbide head for reaming
- Cylindrical shank to CoroReamer™ 830 adaptor
- CoroReamer® 835
- CoroReamer™ 835 solid carbide reamer
- Thread milling tools
- CoroMill® Plura
- CoroMill® Plura, solid carbide end mill for thread milling
- CoroMill® 326
- CoroMill® 326, solid carbide end mill for chamfer milling
- CoroMill® 326, solid carbide end mill for thread milling
- General information
- Coolant supply information
- Cutting tool parameters according to ISO 13399
- Tool reconditioning
Инструменты для фрезерования | CoroMill® Plura
CoroMill® Plura, концевая фреза из цельного твердого сплава для обработки закаленных деталей
Для закаленной стали твердостью 43 ≤ HRc ≤ 63
| Общие значения |
|---|
| FHA [deg] |
| 30.00 |
Метрическая система (мм)
Применимость: P H — 1610
| Код заказа | Применимость | DC [мм] | RE [мм] | ZEFP | APMX [мм] | LU [мм] | LF [мм] | DCONMS [мм] | DN [мм] | BD 1_ [мм] | LB 1_ [мм] | LB 2_ [мм] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R216.22-02030AAI20G | ○ ● | 2.00 | 0.2 | 2 | 2.0 | 2.00 | 57.00 | 6.00 | 2.0 | 18.3 | 18.8 | |
| R216.22-02030AAJ20G | ○ ● | 2.00 | 0.2 | 2 | 2.0 | 20.00 | 75.00 | 6.00 | 1.9 | 1.9 | 20.0 | 23.5 |
| R216.22-03030AAJ03G | ○ ● | 3.00 | 0.3 | 2 | 3.0 | 20.00 | 72.00 | 6.00 | 2.9 | 2.9 | 20.0 | 20.9 |
| R216.22-03030BAI03G | ○ ● | 3.00 | 0.5 | 2 | 3.0 | 3.00 | 57.00 | 6.00 | ||||
| R216.22-04030BAI04G | ○ ● | 4.00 | 0.5 | 2 | 4.0 | 4.00 | 57.00 | 6.00 | ||||
| R216.24-04030AAJ04G | ○ ● | 4.00 | 0.4 | 4 | 4.0 | 20.00 | 72.00 | 6.00 | 3.8 | 3.8 | 20.6 | |
| R216.22-05030BAI05G | ○ ● | 5.00 | 0.5 | 2 | 5.0 | 20.00 | 57.00 | 6.00 | 4.9 | |||
| R216.24-05030BAJ05G | ○ ● | 5.00 | 0.5 | 4 | 5.0 | 20.00 | 72.00 | 6.00 | 4.8 | 4.8 | 21.2 | |
| R216.22-06030CAI06G | ○ ● | 6.00 | 1.0 | 2 | 6.0 | 21.00 | 63.00 | 6.00 | 5.7 | |||
| R216.24-06030BAJ06G | ○ ● | 6.00 | 0.5 | 4 | 6.0 | 24.00 | 75.00 | 6.00 | 5.7 | |||
| R216.24-06030CAI06G | ○ ● | 6.00 | 1.0 | 4 | 6.0 | 21.00 | 57.00 | 6.00 | 5.7 | |||
| R216.22-08030CAI08G | ○ ● | 8.00 | 1.0 | 2 | 8.0 | 27.00 | 72.00 | 8.00 | 7.7 | |||
| R216.24-08030BAJ08G | ○ ● | 8.00 | 0.5 | 4 | 8.0 | 29.00 | 80.00 | 8.00 | 7.8 | |||
| R216.24-08030CAI08G | ○ ● | 8.00 | 1.0 | 4 | 8.0 | 27.00 | 63.00 | 8.00 | 7.7 | |||
| R216.24-08030CAJ08G | ○ ● | 8.00 | 1.0 | 4 | 8.0 | 29.00 | 80.00 | 8.00 | 7.8 | |||
| R216.24-08030DAJ08G | ○ ● | 8.00 | 1.5 | 4 | 8.0 | 29.00 | 80.00 | 8.00 | 7.8 | |||
| R216.22-10030DAI10G | ○ ● | 10.00 | 1.5 | 2 | 10.0 | 32.00 | 72.00 | 10.00 | 9.7 | |||
| R216.24-10030BAJ10G | ○ ● | 10.00 | 0.5 | 4 | 10.0 | 35.00 | 100.00 | 10.00 | 9.9 | |||
| R216.24-10030CAJ10G | ○ ● | 10.00 | 1.0 | 4 | 10.0 | 35.00 | 100.00 | 10.00 | 9.9 | |||
| R216.24-10030DAI10G | ○ ● | 10.00 | 1.5 | 4 | 10.0 | 32.00 | 72.00 | 10.00 | 9.7 | |||
| R216.22-12030DAI12G | ○ ● | 12.00 | 1.5 | 2 | 12.0 | 36.00 | 83.00 | 12.00 | 11.8 | |||
| R216.24-12030BAJ12G | ○ ● | 12.00 | 0.5 | 4 | 12.0 | 36.00 | 100.00 | 12.00 | 11.8 | |||
| R216.24-12030CAJ12G | ○ ● | 12.00 | 1.0 | 4 | 12.0 | 36.00 | 100.00 | 12.00 | 11.8 | |||
| R216.24-12030DAI12G | ○ ● | 12.00 | 1.5 | 4 | 12.0 | 36.00 | 83.00 | 12.00 | 11.8 | |||
| R216.24-12030EAJ12G | ○ ● | 12.00 | 2.0 | 4 | 12.0 | 36.00 | 100.00 | 12.00 | 11.8 | |||
| R216.24-16030EAI16G | ○ ● | 16.00 | 2.0 | 4 | 16.0 | 42.00 | 92.00 | 16.00 | 15.8 |
● = Первый выбор ○ = Хороший выбор
