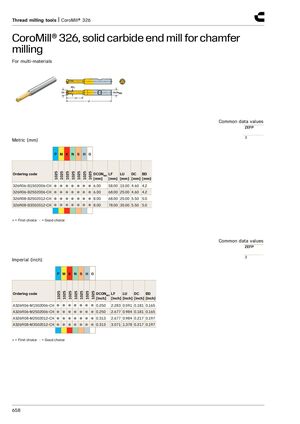

Инструменты для нарезания резьбы фрезерованием | CoroMill® 326
CoroMill® 326, цельнотвердосплавная концевая фреза для фрезерования фасок
Для различных материалов
Общие значения: ZEFP 3
| Ordering code | DCONMS [mm] | LF [mm] | LU [mm] | DC [mm] | BD [mm] |
|---|---|---|---|---|---|
| 326R06-B1502006-CH | 6.00 | 58.00 | 15.00 | 4.60 | 4.2 |
| 326R06-B2502006-CH | 6.00 | 68.00 | 25.00 | 4.60 | 4.2 |
| 326R08-B2502012-CH | 8.00 | 68.00 | 25.00 | 5.50 | 5.0 |
| 326R08-B3502012-CH | 8.00 | 78.00 | 35.00 | 5.50 | 5.0 |
● = Первый выбор ○ = Хороший выбор
Общие значения: ZEFP 3
| Ordering code | DCONMS [inch] | LF [inch] | LU [inch] | DC [inch] | BD [inch] |
|---|---|---|---|---|---|
| A326R06-M1502006-CH | 0.250 | 2.283 | 0.591 | 0.181 | 0.165 |
| A326R06-M2502006-CH | 0.250 | 2.677 | 0.984 | 0.181 | 0.165 |
| A326R08-M2502012-CH | 0.313 | 2.677 | 0.984 | 0.217 | 0.197 |
| A326R08-M3502012-CH | 0.313 | 3.071 | 1.378 | 0.217 | 0.197 |
● = Первый выбор ○ = Хороший выбор
