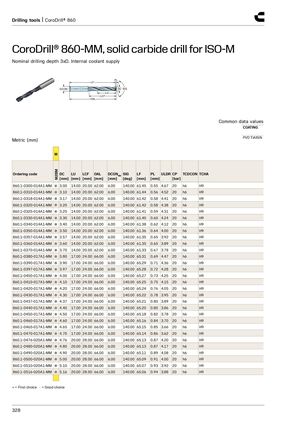

Инструменты для сверления | CoroDrill® 860
CoroDrill® 860-MM, сверло из цельного твердого сплава для ISO-M
Номинальная глубина сверления 3xD. Внутренняя подача СОЖ.
Общие значения данных
Покрытие: PVD TiAlSiN
Метрическая (мм), группа материалов: M, обозначение: M2BM
| Код заказа | M | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | CP [бар] | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0300-014A1-MM | ● | 3.00 | 14.00 | 20.00 | 62.00 | 6.00 | 140.00 | 61.45 | 0.55 | 4.67 | 20 | h6 | H9 |
| 860.1-0310-014A1-MM | ● | 3.10 | 14.00 | 20.00 | 62.00 | 6.00 | 140.00 | 61.44 | 0.56 | 4.52 | 20 | h6 | H9 |
| 860.1-0318-014A1-MM | ● | 3.17 | 14.00 | 20.00 | 62.00 | 6.00 | 140.00 | 61.42 | 0.58 | 4.41 | 20 | h6 | H9 |
| 860.1-0320-014A1-MM | ● | 3.20 | 14.00 | 20.00 | 62.00 | 6.00 | 140.00 | 61.42 | 0.58 | 4.38 | 20 | h6 | H9 |
| 860.1-0325-014A1-MM | ● | 3.25 | 14.00 | 20.00 | 62.00 | 6.00 | 140.00 | 61.41 | 0.59 | 4.31 | 20 | h6 | H9 |
| 860.1-0330-014A1-MM | ● | 3.30 | 14.00 | 20.00 | 62.00 | 6.00 | 140.00 | 61.40 | 0.60 | 4.24 | 20 | h6 | H9 |
| 860.1-0340-014A1-MM | ● | 3.40 | 14.00 | 20.00 | 62.00 | 6.00 | 140.00 | 61.38 | 0.62 | 4.12 | 20 | h6 | H9 |
| 860.1-0350-014A1-MM | ● | 3.50 | 14.00 | 20.00 | 62.00 | 6.00 | 140.00 | 61.36 | 0.64 | 4.00 | 20 | h6 | H9 |
| 860.1-0357-014A1-MM | ● | 3.57 | 14.00 | 20.00 | 62.00 | 6.00 | 140.00 | 61.35 | 0.65 | 3.92 | 20 | h6 | H9 |
| 860.1-0360-014A1-MM | ● | 3.60 | 14.00 | 20.00 | 62.00 | 6.00 | 140.00 | 61.35 | 0.65 | 3.89 | 20 | h6 | H9 |
| 860.1-0370-014A1-MM | ● | 3.70 | 14.00 | 20.00 | 62.00 | 6.00 | 140.00 | 61.33 | 0.67 | 3.78 | 20 | h6 | H9 |
| 860.1-0380-017A1-MM | ● | 3.80 | 17.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.31 | 0.69 | 4.47 | 20 | h6 | H9 |
| 860.1-0390-017A1-MM | ● | 3.90 | 17.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.29 | 0.71 | 4.36 | 20 | h6 | H9 |
| 860.1-0397-017A1-MM | ● | 3.97 | 17.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.28 | 0.72 | 4.28 | 20 | h6 | H9 |
| 860.1-0400-017A1-MM | ● | 4.00 | 17.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.27 | 0.73 | 4.25 | 20 | h6 | H9 |
| 860.1-0410-017A1-MM | ● | 4.10 | 17.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.25 | 0.75 | 4.15 | 20 | h6 | H9 |
| 860.1-0420-017A1-MM | ● | 4.20 | 17.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.24 | 0.76 | 4.05 | 20 | h6 | H9 |
| 860.1-0430-017A1-MM | ● | 4.30 | 17.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.22 | 0.78 | 3.95 | 20 | h6 | H9 |
| 860.1-0437-017A1-MM | ● | 4.37 | 17.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.21 | 0.80 | 3.89 | 20 | h6 | H9 |
| 860.1-0440-017A1-MM | ● | 4.40 | 17.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.20 | 0.80 | 3.86 | 20 | h6 | H9 |
| 860.1-0450-017A1-MM | ● | 4.50 | 17.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.18 | 0.82 | 3.78 | 20 | h6 | H9 |
| 860.1-0460-017A1-MM | ● | 4.60 | 17.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.16 | 0.84 | 3.70 | 20 | h6 | H9 |
| 860.1-0465-017A1-MM | ● | 4.65 | 17.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.15 | 0.85 | 3.66 | 20 | h6 | H9 |
| 860.1-0470-017A1-MM | ● | 4.70 | 17.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.14 | 0.86 | 3.62 | 20 | h6 | H9 |
| 860.1-0476-020A1-MM | ● | 4.76 | 20.00 | 28.00 | 66.00 | 6.00 | 140.00 | 65.13 | 0.87 | 4.20 | 20 | h6 | H9 |
| 860.1-0480-020A1-MM | ● | 4.80 | 20.00 | 28.00 | 66.00 | 6.00 | 140.00 | 65.13 | 0.87 | 4.17 | 20 | h6 | H9 |
| 860.1-0490-020A1-MM | ● | 4.90 | 20.00 | 28.00 | 66.00 | 6.00 | 140.00 | 65.11 | 0.89 | 4.08 | 20 | h6 | H9 |
| 860.1-0500-020A1-MM | ● | 5.00 | 20.00 | 28.00 | 66.00 | 6.00 | 140.00 | 65.09 | 0.91 | 4.00 | 20 | h6 | H9 |
| 860.1-0510-020A1-MM | ● | 5.10 | 20.00 | 28.00 | 66.00 | 6.00 | 140.00 | 65.07 | 0.93 | 3.92 | 20 | h6 | H9 |
| 860.1-0516-020A1-MM | ● | 5.16 | 20.00 | 28.00 | 66.00 | 6.00 | 140.00 | 65.06 | 0.94 | 3.88 | 20 | h6 | H9 |
● — первый выбор, ○ — хороший выбор.
