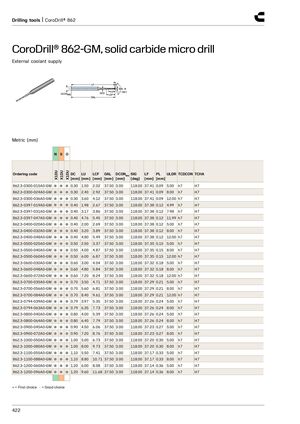

Drilling tools | CoroDrill® 862
CoroDrill® 862-GM, твёрдосплавное монолитное микросвёрло
Внешняя подача СОЖ
Метрическая система (мм)
| Ordering code | DC [mm] | LU [mm] | LCF [mm] | OAL [mm] | DCONMS [mm] | SIG [deg] | LF [mm] | PL [mm] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 862.3-0300-015A0-GM | 0.30 | 1.50 | 2.02 | 37.50 | 3.00 | 118.00 | 37.41 | 0.09 | 5.00 | h7 | H7 |
| 862.3-0300-024A0-GM | 0.30 | 2.40 | 2.92 | 37.50 | 3.00 | 118.00 | 37.41 | 0.09 | 8.00 | h7 | H7 |
| 862.3-0300-036A0-GM | 0.30 | 3.60 | 4.12 | 37.50 | 3.00 | 118.00 | 37.41 | 0.09 | 12.00 | h7 | H7 |
| 862.3-0397-019A0-GM | 0.40 | 1.98 | 2.67 | 37.50 | 3.00 | 118.00 | 37.38 | 0.12 | 4.99 | h7 | H7 |
| 862.3-0397-031A0-GM | 0.40 | 3.17 | 3.86 | 37.50 | 3.00 | 118.00 | 37.38 | 0.12 | 7.98 | h7 | H7 |
| 862.3-0397-047A0-GM | 0.40 | 4.76 | 5.45 | 37.50 | 3.00 | 118.00 | 37.38 | 0.12 | 11.99 | h7 | H7 |
| 862.3-0400-020A0-GM | 0.40 | 2.00 | 2.69 | 37.50 | 3.00 | 118.00 | 37.38 | 0.12 | 5.00 | h7 | H7 |
| 862.3-0400-032A0-GM | 0.40 | 3.20 | 3.89 | 37.50 | 3.00 | 118.00 | 37.38 | 0.12 | 8.00 | h7 | H7 |
| 862.3-0400-048A0-GM | 0.40 | 4.80 | 5.49 | 37.50 | 3.00 | 118.00 | 37.38 | 0.12 | 12.00 | h7 | H7 |
| 862.3-0500-025A0-GM | 0.50 | 2.50 | 3.37 | 37.50 | 3.00 | 118.00 | 37.35 | 0.15 | 5.00 | h7 | H7 |
| 862.3-0500-040A0-GM | 0.50 | 4.00 | 4.87 | 37.50 | 3.00 | 118.00 | 37.35 | 0.15 | 8.00 | h7 | H7 |
| 862.3-0500-060A0-GM | 0.50 | 6.00 | 6.87 | 37.50 | 3.00 | 118.00 | 37.35 | 0.15 | 12.00 | h7 | H7 |
| 862.3-0600-030A0-GM | 0.60 | 3.00 | 4.04 | 37.50 | 3.00 | 118.00 | 37.32 | 0.18 | 5.00 | h7 | H7 |
| 862.3-0600-048A0-GM | 0.60 | 4.80 | 5.84 | 37.50 | 3.00 | 118.00 | 37.32 | 0.18 | 8.00 | h7 | H7 |
| 862.3-0600-072A0-GM | 0.60 | 7.20 | 8.24 | 37.50 | 3.00 | 118.00 | 37.32 | 0.18 | 12.00 | h7 | H7 |
| 862.3-0700-035A0-GM | 0.70 | 3.50 | 4.71 | 37.50 | 3.00 | 118.00 | 37.29 | 0.21 | 5.00 | h7 | H7 |
| 862.3-0700-056A0-GM | 0.70 | 5.60 | 6.81 | 37.50 | 3.00 | 118.00 | 37.29 | 0.21 | 8.00 | h7 | H7 |
| 862.3-0700-084A0-GM | 0.70 | 8.40 | 9.61 | 37.50 | 3.00 | 118.00 | 37.29 | 0.21 | 12.00 | h7 | H7 |
| 862.3-0794-039A0-GM | 0.79 | 3.97 | 5.35 | 37.50 | 3.00 | 118.00 | 37.26 | 0.24 | 5.00 | h7 | H7 |
| 862.3-0794-063A0-GM | 0.79 | 6.35 | 7.73 | 37.50 | 3.00 | 118.00 | 37.26 | 0.24 | 8.00 | h7 | H7 |
| 862.3-0800-040A0-GM | 0.80 | 4.00 | 5.39 | 37.50 | 3.00 | 118.00 | 37.26 | 0.24 | 5.00 | h7 | H7 |
| 862.3-0800-064A0-GM | 0.80 | 6.40 | 7.79 | 37.50 | 3.00 | 118.00 | 37.26 | 0.24 | 8.00 | h7 | H7 |
| 862.3-0900-045A0-GM | 0.90 | 4.50 | 6.06 | 37.50 | 3.00 | 118.00 | 37.23 | 0.27 | 5.00 | h7 | H7 |
| 862.3-0900-072A0-GM | 0.90 | 7.20 | 8.76 | 37.50 | 3.00 | 118.00 | 37.23 | 0.27 | 8.00 | h7 | H7 |
| 862.3-1000-050A0-GM | 1.00 | 5.00 | 6.73 | 37.50 | 3.00 | 118.00 | 37.20 | 0.30 | 5.00 | h7 | H7 |
| 862.3-1000-080A0-GM | 1.00 | 8.00 | 9.73 | 37.50 | 3.00 | 118.00 | 37.20 | 0.30 | 8.00 | h7 | H7 |
| 862.3-1100-055A0-GM | 1.10 | 5.50 | 7.41 | 37.50 | 3.00 | 118.00 | 37.17 | 0.33 | 5.00 | h7 | H7 |
| 862.3-1100-088A0-GM | 1.10 | 8.80 | 10.71 | 37.50 | 3.00 | 118.00 | 37.17 | 0.33 | 8.00 | h7 | H7 |
| 862.3-1200-060A0-GM | 1.20 | 6.00 | 8.08 | 37.50 | 3.00 | 118.00 | 37.14 | 0.36 | 5.00 | h7 | H7 |
| 862.3-1200-096A0-GM | 1.20 | 9.60 | 11.68 | 37.50 | 3.00 | 118.00 | 37.14 | 0.36 | 8.00 | h7 | H7 |
● = Первый выбор ○ = Хороший выбор
