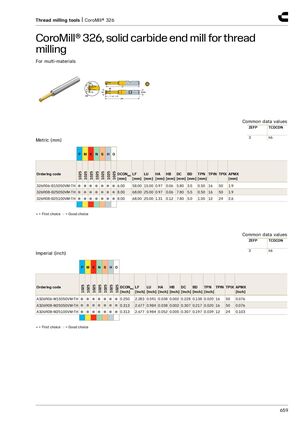

Инструменты для нарезания резьбы фрезерованием | CoroMill® 326
CoroMill® 326, цельнотвердосплавная концевая фреза для фрезерования резьбы
Для различных материалов
Общие значения: ZEFP 3, TCDCON h6
| Ordering code | DCONMS [mm] | LF [mm] | LU [mm] | HA [mm] | HB [mm] | DC [mm] | BD [mm] | TPN | TPIN | TPIX | APMX [mm] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 326R06-B15050VM-TH | 6.00 | 58.00 | 15.00 | 0.97 | 0.06 | 5.80 | 3.5 | 0.50 | 16 | 50 | 1.9 |
| 326R08-B25050VM-TH | 8.00 | 68.00 | 25.00 | 0.97 | 0.06 | 7.80 | 5.5 | 0.50 | 16 | 50 | 1.9 |
| 326R08-B25100VM-TH | 8.00 | 68.00 | 25.00 | 1.31 | 0.12 | 7.80 | 5.0 | 1.00 | 12 | 24 | 2.6 |
● = Первый выбор ○ = Хороший выбор
Общие значения: ZEFP 3, TCDCON h6
| Ordering code | DCONMS [inch] | LF [inch] | LU [inch] | HA [inch] | HB [inch] | DC [inch] | BD [inch] | TPN [inch] | TPIN | TPIX | APMX [inch] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A326R06-M15050VM-TH | 0.250 | 2.283 | 0.591 | 0.038 | 0.002 | 0.228 | 0.138 | 0.020 | 16 | 50 | 0.076 |
| A326R08-M25050VM-TH | 0.313 | 2.677 | 0.984 | 0.038 | 0.002 | 0.307 | 0.217 | 0.020 | 16 | 50 | 0.076 |
| A326R08-M25100VM-TH | 0.313 | 2.677 | 0.984 | 0.052 | 0.005 | 0.307 | 0.197 | 0.039 | 12 | 24 | 0.103 |
● = Первый выбор ○ = Хороший выбор
