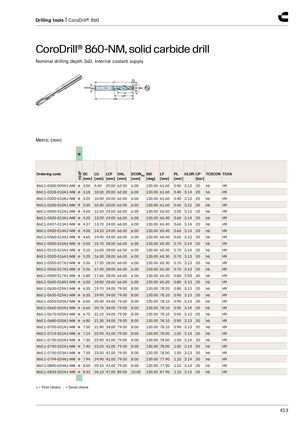

Каталог цельного осевого инструмента Sandvik 2026 - страница 417
Навигация
Дополнение к каталогам Sandvik 2020.2
Каталог Sandvik новые режущие инструменты 2020.1
Дополнение к каталогам Sandvik 2021.1
Каталог Sandvik цельный режущий инструмент 2020
Каталог Sandvik точение материалов высокой твердости- Selection guide
- Milling tools
- CoroMill® Dura
- CoroMill® Dura, solid carbide end mill for general machining
- CoroMill® Dura, solid carbide ball nose end mill for profiling
- CoroMill® Dura, solid carbide end mill for chamfer milling
- CoroMill® Plura
- CoroMill® Plura, solid carbide end mill for heavy duty milling
- CoroMill® Plura, solid carbide end mill for high feed side milling
- CoroMill® Plura solid carbide end mill for high feed side milling
- CoroMill® Plura, solid carbide end mill for high feed side milling
- CoroMill® Plura, solid carbide end mill for edging applications
- CoroMill® Plura, solid carbide end mill for stable multi-operations milling
- CoroMill® Plura, solid carbide end mill for finishing
- CoroMill® Plura, solid carbide end mill for large chip removal
- CoroMill® Plura, solid carbide end mill for high feed face milling
- CoroMill® Plura, solid carbide end mill for plunging
- CoroMill® Plura, solid carbide end mill for roughing with chip breaker
- CoroMill® Plura, solid carbide end mill for hard part milling
- CoroMill® Plura, solid carbide end mill for turn milling
- CoroMill® Plura, solid carbide end mill for micro-milling
- CoroMill® Plura, solid ceramic face mill
- CoroMill® Plura, solid ceramic end mill for high speed roughing
- CoroMill® Plura ball nose, solid carbide end mill for profiling
- CoroMill® Plura lollipop, solid carbide end mill for profiling
- CoroMill® Plura conical ball nose, solid carbide end mill for profiling
- CoroMill® Plura barrel, solid carbide end mill for profiling
- CoroMill® Plura, solid carbide ball nose end mill for profiling
- CoroMill® Plura, solid carbide ball nose end mill for micro-milling
- CoroMill® 316
- CoroMill® 316, solid carbide head for heavy duty milling
- CoroMill® 316, solid carbide head for stable multi-operation milling
- CoroMill® 316, solid carbide head for high feed side milling
- CoroMill® 316, solid carbide head for finishing
- CoroMill® 316, solid carbide head for high feed face milling
- CoroMill® 316, solid carbide head for high chip load milling
- CoroMill® 316, solid carbide head for large chip removal
- CoroMill® 316, solid carbide head for roughing with chip breaker
- CoroMill® 316, solid carbide head for profiling
- CoroMill® 316, solid carbide head for chamfer milling
- CoroMill® 316, solid carbide head with quarter circle profile
- CoroMill® 316, brazed ceramic head for high speed roughing
- Drilling tools
- CoroDrill® Dura 462
- CoroDrill® Dura 462, solid carbide step and chamfer drill for multi-materials
- CoroDrill® Dura 462, solid carbide drill for multi-materials
- CoroDrill® Dura 462, solid carbide micro drill for multi-materials
- CoroDrill® 860
- CoroDrill® 860-MM, solid carbide drill for ISO-M
- CoroDrill® 860-SD, solid carbide drill for ISO-S
- CoroDrill® 860-GM, solid carbide step and chamfer drill
- CoroDrill® 860-GM, solid carbide drill
- CoroDrill® 860-PM, solid carbide step and chamfer drill
- CoroDrill® 860-PM, solid carbide drill
- CoroDrill® 860-SM, Solid carbide drill
- CoroDrill® 860-NM, solid carbide drill
- CoroDrill® 862
- CoroDrill® 862-GM, solid carbide micro drill
- CoroDrill® 862-GM, solid carbide micro drill for pilot holes
- Tapping tools
- CoroTap® 100
- CoroTap® 100, cutting tap with straight flutes
- CoroTap® 200
- CoroTap® 200, cutting tap with spiral point
- CoroTap® 300
- CoroTap® 300, cutting tap with spiral flutes
- CoroTap® 400
- CoroTap® 400, forming tap
- Reaming tools
- CoroReamer® 435
- CoroReamer™ 435 solid carbide reamer
- CoroReamer® 830
- CoroReamer™ 830 solid carbide head for reaming
- Cylindrical shank to CoroReamer™ 830 adaptor
- CoroReamer® 835
- CoroReamer™ 835 solid carbide reamer
- Thread milling tools
- CoroMill® Plura
- CoroMill® Plura, solid carbide end mill for thread milling
- CoroMill® 326
- CoroMill® 326, solid carbide end mill for chamfer milling
- CoroMill® 326, solid carbide end mill for thread milling
- General information
- Coolant supply information
- Cutting tool parameters according to ISO 13399
- Tool reconditioning
Инструменты для сверления | CoroDrill® 860
CoroDrill® 860-NM, сверло из твёрдого сплава
Номинальная глубина сверления 3xD. Внутренняя подача СОЖ.
Метрическая система (мм)
N H10F
| Код заказа | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | CP [бар] | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0300-009A1-NM ● | 3.00 | 9.40 | 20.00 | 62.00 | 6.00 | 130.00 | 61.60 | 0.40 | 3.13 | 20 | h6 | H9 |
| 860.1-0318-010A1-NM ● | 3.18 | 10.00 | 20.00 | 62.00 | 6.00 | 130.00 | 61.60 | 0.40 | 3.14 | 20 | h6 | H9 |
| 860.1-0320-010A1-NM ● | 3.20 | 10.00 | 20.00 | 62.00 | 6.00 | 130.00 | 61.60 | 0.40 | 3.13 | 20 | h6 | H9 |
| 860.1-0330-010A1-NM ● | 3.30 | 10.30 | 20.00 | 62.00 | 6.00 | 130.00 | 61.60 | 0.40 | 3.12 | 20 | h6 | H9 |
| 860.1-0400-012A1-NM ● | 4.00 | 12.50 | 24.00 | 66.00 | 6.00 | 130.00 | 65.50 | 0.50 | 3.13 | 20 | h6 | H9 |
| 860.1-0420-013A1-NM ● | 4.20 | 13.20 | 24.00 | 66.00 | 6.00 | 130.00 | 65.40 | 0.60 | 3.14 | 20 | h6 | H9 |
| 860.1-0437-013A1-NM ● | 4.37 | 13.70 | 24.00 | 66.00 | 6.00 | 130.00 | 65.40 | 0.60 | 3.14 | 20 | h6 | H9 |
| 860.1-0450-014A1-NM ● | 4.50 | 14.10 | 24.00 | 66.00 | 6.00 | 130.00 | 65.40 | 0.60 | 3.13 | 20 | h6 | H9 |
| 860.1-0460-014A1-NM ● | 4.60 | 14.40 | 24.00 | 66.00 | 6.00 | 130.00 | 65.40 | 0.60 | 3.13 | 20 | h6 | H9 |
| 860.1-0500-015A1-NM ● | 5.00 | 15.70 | 28.00 | 66.00 | 6.00 | 130.00 | 65.30 | 0.70 | 3.14 | 20 | h6 | H9 |
| 860.1-0510-015A1-NM ● | 5.10 | 16.00 | 28.00 | 66.00 | 6.00 | 130.00 | 65.30 | 0.70 | 3.14 | 20 | h6 | H9 |
| 860.1-0520-016A1-NM ● | 5.20 | 16.30 | 28.00 | 66.00 | 6.00 | 130.00 | 65.30 | 0.70 | 3.13 | 20 | h6 | H9 |
| 860.1-0550-017A1-NM ● | 5.50 | 17.20 | 28.00 | 66.00 | 6.00 | 130.00 | 65.30 | 0.70 | 3.13 | 20 | h6 | H9 |
| 860.1-0556-017A1-NM ● | 5.56 | 17.40 | 28.00 | 66.00 | 6.00 | 130.00 | 65.30 | 0.70 | 3.13 | 20 | h6 | H9 |
| 860.1-0580-017A1-NM ● | 5.80 | 17.60 | 28.00 | 66.00 | 6.00 | 130.00 | 65.20 | 0.80 | 3.03 | 20 | h6 | H9 |
| 860.1-0600-018A1-NM ● | 6.00 | 18.80 | 28.00 | 66.00 | 6.00 | 130.00 | 65.20 | 0.80 | 3.13 | 20 | h6 | H9 |
| 860.1-0630-019A1-NM ● | 6.30 | 19.70 | 34.00 | 79.00 | 8.00 | 130.00 | 78.20 | 0.80 | 3.13 | 20 | h6 | H9 |
| 860.1-0635-019A1-NM ● | 6.35 | 19.90 | 34.00 | 79.00 | 8.00 | 130.00 | 78.10 | 0.90 | 3.13 | 20 | h6 | H9 |
| 860.1-0650-020A1-NM ● | 6.50 | 20.40 | 34.00 | 79.00 | 8.00 | 130.00 | 78.10 | 0.90 | 3.14 | 20 | h6 | H9 |
| 860.1-0660-020A1-NM ● | 6.60 | 20.70 | 34.00 | 79.00 | 8.00 | 130.00 | 78.10 | 0.90 | 3.14 | 20 | h6 | H9 |
| 860.1-0675-020A1-NM ● | 6.75 | 21.10 | 34.00 | 79.00 | 8.00 | 130.00 | 78.10 | 0.90 | 3.13 | 20 | h6 | H9 |
| 860.1-0680-020A1-NM ● | 6.80 | 21.30 | 34.00 | 79.00 | 8.00 | 130.00 | 78.10 | 0.90 | 3.13 | 20 | h6 | H9 |
| 860.1-0700-021A1-NM ● | 7.00 | 21.90 | 34.00 | 79.00 | 8.00 | 130.00 | 78.10 | 0.90 | 3.13 | 20 | h6 | H9 |
| 860.1-0714-021A1-NM ● | 7.14 | 22.40 | 41.00 | 79.00 | 8.00 | 130.00 | 78.00 | 1.00 | 3.14 | 20 | h6 | H9 |
| 860.1-0730-022A1-NM ● | 7.30 | 22.90 | 41.00 | 79.00 | 8.00 | 130.00 | 78.00 | 1.00 | 3.14 | 20 | h6 | H9 |
| 860.1-0740-022A1-NM ● | 7.40 | 23.20 | 41.00 | 79.00 | 8.00 | 130.00 | 78.00 | 1.00 | 3.14 | 20 | h6 | H9 |
| 860.1-0750-023A1-NM ● | 7.50 | 23.50 | 41.00 | 79.00 | 8.00 | 130.00 | 78.00 | 1.00 | 3.13 | 20 | h6 | H9 |
| 860.1-0794-024A1-NM ● | 7.94 | 24.90 | 41.00 | 79.00 | 8.00 | 130.00 | 77.90 | 1.10 | 3.14 | 20 | h6 | H9 |
| 860.1-0800-024A1-NM ● | 8.00 | 25.10 | 41.00 | 79.00 | 8.00 | 130.00 | 77.90 | 1.10 | 3.14 | 20 | h6 | H9 |
| 860.1-0833-025A1-NM ● | 8.33 | 26.10 | 47.00 | 89.00 | 10.00 | 130.00 | 87.90 | 1.10 | 3.13 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
