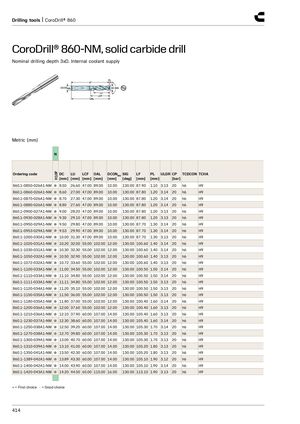

Инструменты для сверления | CoroDrill® 860
CoroDrill® 860-NM, сверло из твёрдого сплава
Номинальная глубина сверления 3xD. Внутренняя подача СОЖ.
Метрическая система (мм)
N H10F
| Код заказа | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | CP [бар] | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0850-026A1-NM ● | 8.50 | 26.60 | 47.00 | 89.00 | 10.00 | 130.00 | 87.90 | 1.10 | 3.13 | 20 | h6 | H9 |
| 860.1-0860-026A1-NM ● | 8.60 | 27.00 | 47.00 | 89.00 | 10.00 | 130.00 | 87.80 | 1.20 | 3.14 | 20 | h6 | H9 |
| 860.1-0870-026A1-NM ● | 8.70 | 27.30 | 47.00 | 89.00 | 10.00 | 130.00 | 87.80 | 1.20 | 3.14 | 20 | h6 | H9 |
| 860.1-0880-026A1-NM ● | 8.80 | 27.60 | 47.00 | 89.00 | 10.00 | 130.00 | 87.80 | 1.20 | 3.14 | 20 | h6 | H9 |
| 860.1-0900-027A1-NM ● | 9.00 | 28.20 | 47.00 | 89.00 | 10.00 | 130.00 | 87.80 | 1.20 | 3.13 | 20 | h6 | H9 |
| 860.1-0930-028A1-NM ● | 9.30 | 29.10 | 47.00 | 89.00 | 10.00 | 130.00 | 87.80 | 1.20 | 3.13 | 20 | h6 | H9 |
| 860.1-0950-029A1-NM ● | 9.50 | 29.80 | 47.00 | 89.00 | 10.00 | 130.00 | 87.70 | 1.30 | 3.14 | 20 | h6 | H9 |
| 860.1-0953-029A1-NM ● | 9.53 | 29.90 | 47.00 | 89.00 | 10.00 | 130.00 | 87.70 | 1.30 | 3.14 | 20 | h6 | H9 |
| 860.1-1000-030A1-NM ● | 10.00 | 31.30 | 47.00 | 89.00 | 10.00 | 130.00 | 87.70 | 1.30 | 3.13 | 20 | h6 | H9 |
| 860.1-1020-031A1-NM ● | 10.20 | 32.00 | 55.00 | 102.00 | 12.00 | 130.00 | 100.60 | 1.40 | 3.14 | 20 | h6 | H9 |
| 860.1-1030-031A1-NM ● | 10.30 | 32.30 | 55.00 | 102.00 | 12.00 | 130.00 | 100.60 | 1.40 | 3.14 | 20 | h6 | H9 |
| 860.1-1050-032A1-NM ● | 10.50 | 32.90 | 55.00 | 102.00 | 12.00 | 130.00 | 100.60 | 1.40 | 3.13 | 20 | h6 | H9 |
| 860.1-1072-032A1-NM ● | 10.72 | 33.60 | 55.00 | 102.00 | 12.00 | 130.00 | 100.60 | 1.40 | 3.13 | 20 | h6 | H9 |
| 860.1-1100-033A1-NM ● | 11.00 | 34.50 | 55.00 | 102.00 | 12.00 | 130.00 | 100.50 | 1.50 | 3.14 | 20 | h6 | H9 |
| 860.1-1110-033A1-NM ● | 11.10 | 34.80 | 55.00 | 102.00 | 12.00 | 130.00 | 100.50 | 1.50 | 3.14 | 20 | h6 | H9 |
| 860.1-1111-033A1-NM ● | 11.11 | 34.80 | 55.00 | 102.00 | 12.00 | 130.00 | 100.50 | 1.50 | 3.13 | 20 | h6 | H9 |
| 860.1-1120-034A1-NM ● | 11.20 | 35.10 | 55.00 | 102.00 | 12.00 | 130.00 | 100.50 | 1.50 | 3.13 | 20 | h6 | H9 |
| 860.1-1150-035A1-NM ● | 11.50 | 36.00 | 55.00 | 102.00 | 12.00 | 130.00 | 100.50 | 1.50 | 3.13 | 20 | h6 | H9 |
| 860.1-1180-035A1-NM ● | 11.80 | 37.00 | 55.00 | 102.00 | 12.00 | 130.00 | 100.40 | 1.60 | 3.14 | 20 | h6 | H9 |
| 860.1-1200-036A1-NM ● | 12.00 | 37.60 | 55.00 | 102.00 | 12.00 | 130.00 | 100.40 | 1.60 | 3.13 | 20 | h6 | H9 |
| 860.1-1210-036A1-NM ● | 12.10 | 37.90 | 60.00 | 107.00 | 14.00 | 130.00 | 105.40 | 1.60 | 3.13 | 20 | h6 | H9 |
| 860.1-1230-037A1-NM ● | 12.30 | 38.60 | 60.00 | 107.00 | 14.00 | 130.00 | 105.40 | 1.60 | 3.14 | 20 | h6 | H9 |
| 860.1-1250-038A1-NM ● | 12.50 | 39.20 | 60.00 | 107.00 | 14.00 | 130.00 | 105.30 | 1.70 | 3.14 | 20 | h6 | H9 |
| 860.1-1270-038A1-NM ● | 12.70 | 39.80 | 60.00 | 107.00 | 14.00 | 130.00 | 105.30 | 1.70 | 3.13 | 20 | h6 | H9 |
| 860.1-1300-039A1-NM ● | 13.00 | 40.70 | 60.00 | 107.00 | 14.00 | 130.00 | 105.30 | 1.70 | 3.13 | 20 | h6 | H9 |
| 860.1-1310-039A1-NM ● | 13.10 | 41.00 | 60.00 | 107.00 | 14.00 | 130.00 | 105.20 | 1.80 | 3.13 | 20 | h6 | H9 |
| 860.1-1350-041A1-NM ● | 13.50 | 42.30 | 60.00 | 107.00 | 14.00 | 130.00 | 105.20 | 1.80 | 3.13 | 20 | h6 | H9 |
| 860.1-1389-042A1-NM ● | 13.89 | 43.30 | 60.00 | 107.00 | 14.00 | 130.00 | 105.10 | 1.90 | 3.12 | 20 | h6 | H9 |
| 860.1-1400-042A1-NM ● | 14.00 | 43.90 | 60.00 | 107.00 | 14.00 | 130.00 | 105.10 | 1.90 | 3.14 | 20 | h6 | H9 |
| 860.1-1420-043A1-NM ● | 14.20 | 44.50 | 65.00 | 115.00 | 16.00 | 130.00 | 113.10 | 1.90 | 3.13 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
