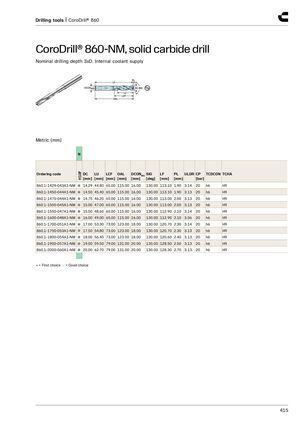

Инструменты для сверления | CoroDrill® 860
CoroDrill® 860-NM, сверло из твёрдого сплава
Номинальная глубина сверления 3xD. Внутренняя подача СОЖ.
Метрическая система (мм)
N H10F
| Код заказа | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | CP [бар] | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-1429-043A1-NM ● | 14.29 | 44.80 | 65.00 | 115.00 | 16.00 | 130.00 | 113.10 | 1.90 | 3.14 | 20 | h6 | H9 |
| 860.1-1450-044A1-NM ● | 14.50 | 45.40 | 65.00 | 115.00 | 16.00 | 130.00 | 113.10 | 1.90 | 3.13 | 20 | h6 | H9 |
| 860.1-1475-044A1-NM ● | 14.75 | 46.20 | 65.00 | 115.00 | 16.00 | 130.00 | 113.00 | 2.00 | 3.13 | 20 | h6 | H9 |
| 860.1-1500-045A1-NM ● | 15.00 | 47.00 | 65.00 | 115.00 | 16.00 | 130.00 | 113.00 | 2.00 | 3.13 | 20 | h6 | H9 |
| 860.1-1550-047A1-NM ● | 15.50 | 48.60 | 65.00 | 115.00 | 16.00 | 130.00 | 112.90 | 2.10 | 3.14 | 20 | h6 | H9 |
| 860.1-1600-048A1-NM ● | 16.00 | 49.00 | 65.00 | 115.00 | 16.00 | 130.00 | 112.90 | 2.10 | 3.06 | 20 | h6 | H9 |
| 860.1-1700-051A1-NM ● | 17.00 | 53.30 | 73.00 | 123.00 | 18.00 | 130.00 | 120.70 | 2.30 | 3.14 | 20 | h6 | H9 |
| 860.1-1750-053A1-NM ● | 17.50 | 54.80 | 73.00 | 123.00 | 18.00 | 130.00 | 120.70 | 2.30 | 3.13 | 20 | h6 | H9 |
| 860.1-1800-054A1-NM ● | 18.00 | 56.40 | 73.00 | 123.00 | 18.00 | 130.00 | 120.60 | 2.40 | 3.13 | 20 | h6 | H9 |
| 860.1-1900-057A1-NM ● | 19.00 | 59.50 | 79.00 | 131.00 | 20.00 | 130.00 | 128.50 | 2.50 | 3.13 | 20 | h6 | H9 |
| 860.1-2000-060A1-NM ● | 20.00 | 62.70 | 79.00 | 131.00 | 20.00 | 130.00 | 128.30 | 2.70 | 3.13 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
