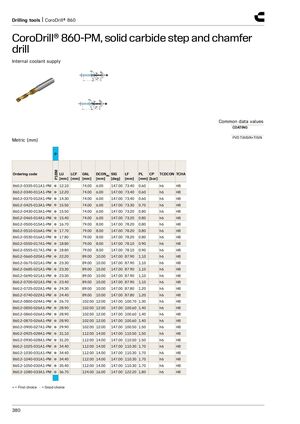

Инструмент для сверления | CoroDrill® 860
CoroDrill® 860-PM, сплошное твердосплавное ступенчатое сверло с фаской
Внутренняя подача СОЖ.
Общие значения данных
ПОКРЫТИЕ: PVD TiAlSiN+TiSiN
Метрическая система (мм)
| Код заказа | P | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | CP [бар] | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.2-0335-011A1-PM | ● | 12.10 | 74.00 | 6.00 | 147.00 | 73.40 | 0.60 | h6 | H8 | ||
| 860.2-0340-011A1-PM | ● | 12.20 | 74.00 | 6.00 | 147.00 | 73.40 | 0.60 | h6 | H8 | ||
| 860.2-0370-012A1-PM | ● | 14.30 | 74.00 | 6.00 | 147.00 | 73.40 | 0.60 | h6 | H8 | ||
| 860.2-0425-013A1-PM | ● | 15.50 | 74.00 | 6.00 | 147.00 | 73.30 | 0.70 | h6 | H8 | ||
| 860.2-0430-013A1-PM | ● | 15.50 | 74.00 | 6.00 | 147.00 | 73.20 | 0.80 | h6 | H8 | ||
| 860.2-0465-014A1-PM | ● | 15.40 | 74.00 | 6.00 | 147.00 | 73.20 | 0.80 | h6 | H8 | ||
| 860.2-0500-015A1-PM | ● | 16.70 | 79.00 | 8.00 | 147.00 | 78.20 | 0.80 | h6 | H8 | ||
| 860.2-0510-016A1-PM | ● | 17.70 | 79.00 | 8.00 | 147.00 | 78.20 | 0.80 | h6 | H8 | ||
| 860.2-0530-016A1-PM | ● | 17.80 | 79.00 | 8.00 | 147.00 | 78.20 | 0.80 | h6 | H8 | ||
| 860.2-0550-017A1-PM | ● | 18.80 | 79.00 | 8.00 | 147.00 | 78.10 | 0.90 | h6 | H8 | ||
| 860.2-0555-017A1-PM | ● | 18.80 | 79.00 | 8.00 | 147.00 | 78.10 | 0.90 | h6 | H8 | ||
| 860.2-0660-020A1-PM | ● | 22.20 | 89.00 | 10.00 | 147.00 | 87.90 | 1.10 | h6 | H8 | ||
| 860.2-0675-021A1-PM | ● | 23.30 | 89.00 | 10.00 | 147.00 | 87.90 | 1.10 | h6 | H8 | ||
| 860.2-0685-021A1-PM | ● | 23.30 | 89.00 | 10.00 | 147.00 | 87.90 | 1.10 | h6 | H8 | ||
| 860.2-0690-021A1-PM | ● | 23.30 | 89.00 | 10.00 | 147.00 | 87.90 | 1.10 | h6 | H8 | ||
| 860.2-0700-021A1-PM | ● | 23.40 | 89.00 | 10.00 | 147.00 | 87.90 | 1.10 | h6 | H8 | ||
| 860.2-0725-022A1-PM | ● | 24.30 | 89.00 | 10.00 | 147.00 | 87.80 | 1.20 | h6 | H8 | ||
| 860.2-0740-022A1-PM | ● | 24.40 | 89.00 | 10.00 | 147.00 | 87.80 | 1.20 | h6 | H8 | ||
| 860.2-0800-024A1-PM | ● | 26.70 | 102.00 | 12.00 | 147.00 | 100.70 | 1.30 | h6 | H8 | ||
| 860.2-0850-026A1-PM | ● | 28.90 | 102.00 | 12.00 | 147.00 | 100.60 | 1.40 | h6 | H8 | ||
| 860.2-0860-026A1-PM | ● | 28.90 | 102.00 | 12.00 | 147.00 | 100.60 | 1.40 | h6 | H8 | ||
| 860.2-0870-026A1-PM | ● | 28.90 | 102.00 | 12.00 | 147.00 | 100.60 | 1.40 | h6 | H8 | ||
| 860.2-0900-027A1-PM | ● | 29.90 | 102.00 | 12.00 | 147.00 | 100.50 | 1.50 | h6 | H8 | ||
| 860.2-0925-028A1-PM | ● | 31.10 | 112.00 | 14.00 | 147.00 | 110.50 | 1.50 | h6 | H8 | ||
| 860.2-0930-028A1-PM | ● | 31.20 | 112.00 | 14.00 | 147.00 | 110.50 | 1.50 | h6 | H8 | ||
| 860.2-1025-031A1-PM | ● | 34.40 | 112.00 | 14.00 | 147.00 | 110.30 | 1.70 | h6 | H8 | ||
| 860.2-1030-031A1-PM | ● | 34.40 | 112.00 | 14.00 | 147.00 | 110.30 | 1.70 | h6 | H8 | ||
| 860.2-1040-031A1-PM | ● | 34.40 | 112.00 | 14.00 | 147.00 | 110.30 | 1.70 | h6 | H8 | ||
| 860.2-1050-032A1-PM | ● | 35.40 | 112.00 | 14.00 | 147.00 | 110.30 | 1.70 | h6 | H8 | ||
| 860.2-1080-033A1-PM | ● | 36.70 | 124.00 | 16.00 | 147.00 | 122.20 | 1.80 | h6 | H8 |
● = первый выбор ○ = хороший выбор
