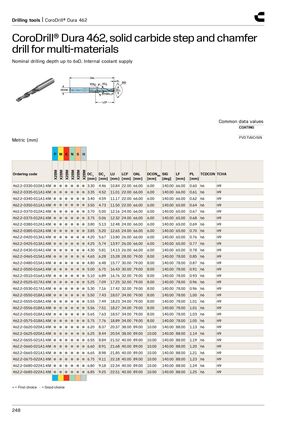

Инструменты для сверления | CoroDrill® Dura 462
CoroDrill® Dura 462, цельнотвердосплавное ступенчатое сверло с фаской для мультиматериалов
Номинальная глубина сверления до 6xD. Внутренняя подача СОЖ.
Общие значения данных: Покрытие PVD TiAlCrSiN
Метрические (мм)
| Марка | P | M | K | N | S | H |
|---|---|---|---|---|---|---|
| X2BM | ● | ● | ● | ● | ● | ● |
| Код заказа | DC1 [мм] | DC2 [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.2-0330-010A1-XM | 3.30 | 4.46 | 10.84 | 22.00 | 66.00 | 6.00 | 140.00 | 66.00 | 0.60 | h6 | H9 |
| 462.2-0335-011A1-XM | 3.35 | 4.52 | 11.01 | 22.00 | 66.00 | 6.00 | 140.00 | 66.00 | 0.61 | h6 | H9 |
| 462.2-0340-011A1-XM | 3.40 | 4.59 | 11.17 | 22.00 | 66.00 | 6.00 | 140.00 | 66.00 | 0.62 | h6 | H9 |
| 462.2-0350-011A1-XM | 3.50 | 4.73 | 11.50 | 22.00 | 66.00 | 6.00 | 140.00 | 65.00 | 0.64 | h6 | H9 |
| 462.2-0370-012A1-XM | 3.70 | 5.00 | 12.16 | 24.00 | 66.00 | 6.00 | 140.00 | 65.00 | 0.67 | h6 | H9 |
| 462.2-0375-012A1-XM | 3.75 | 5.06 | 12.32 | 24.00 | 66.00 | 6.00 | 140.00 | 65.00 | 0.68 | h6 | H9 |
| 462.2-0380-012A1-XM | 3.80 | 5.13 | 12.48 | 24.00 | 66.00 | 6.00 | 140.00 | 65.00 | 0.69 | h6 | H9 |
| 462.2-0385-012A1-XM | 3.85 | 5.20 | 12.65 | 24.00 | 66.00 | 6.00 | 140.00 | 65.00 | 0.70 | h6 | H9 |
| 462.2-0420-013A1-XM | 4.20 | 5.67 | 13.80 | 26.00 | 66.00 | 6.00 | 140.00 | 65.00 | 0.76 | h6 | H9 |
| 462.2-0425-013A1-XM | 4.25 | 5.74 | 13.97 | 26.00 | 66.00 | 6.00 | 140.00 | 65.00 | 0.77 | h6 | H9 |
| 462.2-0430-014A1-XM | 4.30 | 5.81 | 14.13 | 26.00 | 66.00 | 6.00 | 140.00 | 65.00 | 0.78 | h6 | H9 |
| 462.2-0465-015A1-XM | 4.65 | 6.28 | 15.28 | 28.00 | 79.00 | 8.00 | 140.00 | 78.00 | 0.85 | h6 | H9 |
| 462.2-0480-015A1-XM | 4.80 | 6.48 | 15.77 | 30.00 | 79.00 | 8.00 | 140.00 | 78.00 | 0.87 | h6 | H9 |
| 462.2-0500-016A1-XM | 5.00 | 6.75 | 16.43 | 30.00 | 79.00 | 8.00 | 140.00 | 78.00 | 0.91 | h6 | H9 |
| 462.2-0510-016A1-XM | 5.10 | 6.89 | 16.76 | 32.00 | 79.00 | 8.00 | 140.00 | 78.00 | 0.93 | h6 | H9 |
| 462.2-0525-017A1-XM | 5.25 | 7.09 | 17.25 | 32.00 | 79.00 | 8.00 | 140.00 | 78.00 | 0.96 | h6 | H9 |
| 462.2-0530-017A1-XM | 5.30 | 7.16 | 17.42 | 32.00 | 79.00 | 8.00 | 140.00 | 78.00 | 0.96 | h6 | H9 |
| 462.2-0550-018A1-XM | 5.50 | 7.43 | 18.07 | 34.00 | 79.00 | 8.00 | 140.00 | 78.00 | 1.00 | h6 | H9 |
| 462.2-0555-018A1-XM | 5.55 | 7.49 | 18.23 | 34.00 | 79.00 | 8.00 | 140.00 | 78.00 | 1.01 | h6 | H9 |
| 462.2-0556-018A1-XM | 5.56 | 7.51 | 18.27 | 34.00 | 79.00 | 8.00 | 140.00 | 78.00 | 1.01 | h6 | H9 |
| 462.2-0565-018A1-XM | 5.65 | 7.63 | 18.57 | 34.00 | 79.00 | 8.00 | 140.00 | 78.00 | 1.03 | h6 | H9 |
| 462.2-0575-018A1-XM | 5.75 | 7.76 | 18.89 | 34.00 | 79.00 | 8.00 | 140.00 | 78.00 | 1.05 | h6 | H9 |
| 462.2-0620-020A1-XM | 6.20 | 8.37 | 20.37 | 38.00 | 89.00 | 10.00 | 140.00 | 88.00 | 1.13 | h6 | H9 |
| 462.2-0625-020A1-XM | 6.25 | 8.44 | 20.54 | 38.00 | 89.00 | 10.00 | 140.00 | 88.00 | 1.14 | h6 | H9 |
| 462.2-0655-021A1-XM | 6.55 | 8.84 | 21.52 | 40.00 | 89.00 | 10.00 | 140.00 | 88.00 | 1.19 | h6 | H9 |
| 462.2-0660-021A1-XM | 6.60 | 8.91 | 21.68 | 40.00 | 89.00 | 10.00 | 140.00 | 88.00 | 1.20 | h6 | H9 |
| 462.2-0665-021A1-XM | 6.65 | 8.98 | 21.85 | 40.00 | 89.00 | 10.00 | 140.00 | 88.00 | 1.21 | h6 | H9 |
| 462.2-0675-022A1-XM | 6.75 | 9.11 | 22.18 | 40.00 | 89.00 | 10.00 | 140.00 | 88.00 | 1.23 | h6 | H9 |
| 462.2-0680-022A1-XM | 6.80 | 9.18 | 22.34 | 40.00 | 89.00 | 10.00 | 140.00 | 88.00 | 1.24 | h6 | H9 |
| 462.2-0685-022A1-XM | 6.85 | 9.25 | 22.51 | 40.00 | 89.00 | 10.00 | 140.00 | 88.00 | 1.25 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
