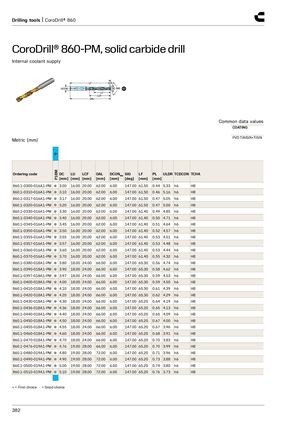

Инструменты для сверления | CoroDrill® 860
CoroDrill® 860-PM, сверло из твёрдого сплава
Внутренняя подача СОЖ
| Общие значения | |
|---|---|
| Покрытие | PVD TiAlSiN+TiSiN |
Метрическая система (мм)
P, P1BM
| Код заказа | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0300-016A1-PM ● | 3.00 | 16.00 | 20.00 | 62.00 | 6.00 | 147.00 | 61.50 | 0.44 | 5.33 | h6 | H8 |
| 860.1-0310-016A1-PM ● | 3.10 | 16.00 | 20.00 | 62.00 | 6.00 | 147.00 | 61.50 | 0.46 | 5.16 | h6 | H8 |
| 860.1-0317-016A1-PM ● | 3.17 | 16.00 | 20.00 | 62.00 | 6.00 | 147.00 | 61.50 | 0.47 | 5.05 | h6 | H8 |
| 860.1-0320-016A1-PM ● | 3.20 | 16.00 | 20.00 | 62.00 | 6.00 | 147.00 | 61.50 | 0.47 | 5.00 | h6 | H8 |
| 860.1-0330-016A1-PM ● | 3.30 | 16.00 | 20.00 | 62.00 | 6.00 | 147.00 | 61.40 | 0.49 | 4.85 | h6 | H8 |
| 860.1-0340-016A1-PM ● | 3.40 | 16.00 | 20.00 | 62.00 | 6.00 | 147.00 | 61.40 | 0.50 | 4.71 | h6 | H8 |
| 860.1-0345-016A1-PM ● | 3.45 | 16.00 | 20.00 | 62.00 | 6.00 | 147.00 | 61.40 | 0.51 | 4.64 | h6 | H8 |
| 860.1-0350-016A1-PM ● | 3.50 | 16.00 | 20.00 | 62.00 | 6.00 | 147.00 | 61.40 | 0.52 | 4.57 | h6 | H8 |
| 860.1-0355-016A1-PM ● | 3.55 | 16.00 | 20.00 | 62.00 | 6.00 | 147.00 | 61.40 | 0.53 | 4.51 | h6 | H8 |
| 860.1-0357-016A1-PM ● | 3.57 | 16.00 | 20.00 | 62.00 | 6.00 | 147.00 | 61.40 | 0.53 | 4.48 | h6 | H8 |
| 860.1-0360-016A1-PM ● | 3.60 | 16.00 | 20.00 | 62.00 | 6.00 | 147.00 | 61.40 | 0.53 | 4.44 | h6 | H8 |
| 860.1-0370-016A1-PM ● | 3.70 | 16.00 | 20.00 | 62.00 | 6.00 | 147.00 | 61.40 | 0.55 | 4.32 | h6 | H8 |
| 860.1-0380-018A1-PM ● | 3.80 | 18.00 | 24.00 | 66.00 | 6.00 | 147.00 | 65.30 | 0.56 | 4.74 | h6 | H8 |
| 860.1-0390-018A1-PM ● | 3.90 | 18.00 | 24.00 | 66.00 | 6.00 | 147.00 | 65.30 | 0.58 | 4.62 | h6 | H8 |
| 860.1-0397-018A1-PM ● | 3.97 | 18.00 | 24.00 | 66.00 | 6.00 | 147.00 | 65.30 | 0.59 | 4.53 | h6 | H8 |
| 860.1-0400-018A1-PM ● | 4.00 | 18.00 | 24.00 | 66.00 | 6.00 | 147.00 | 65.30 | 0.59 | 4.50 | h6 | H8 |
| 860.1-0410-018A1-PM ● | 4.10 | 18.00 | 24.00 | 66.00 | 6.00 | 147.00 | 65.30 | 0.61 | 4.39 | h6 | H8 |
| 860.1-0420-018A1-PM ● | 4.20 | 18.00 | 24.00 | 66.00 | 6.00 | 147.00 | 65.30 | 0.62 | 4.29 | h6 | H8 |
| 860.1-0430-018A1-PM ● | 4.30 | 18.00 | 24.00 | 66.00 | 6.00 | 147.00 | 65.20 | 0.64 | 4.19 | h6 | H8 |
| 860.1-0436-018A1-PM ● | 4.36 | 18.00 | 24.00 | 66.00 | 6.00 | 147.00 | 65.20 | 0.65 | 4.13 | h6 | H8 |
| 860.1-0440-018A1-PM ● | 4.40 | 18.00 | 24.00 | 66.00 | 6.00 | 147.00 | 65.20 | 0.65 | 4.09 | h6 | H8 |
| 860.1-0450-018A1-PM ● | 4.50 | 18.00 | 24.00 | 66.00 | 6.00 | 147.00 | 65.20 | 0.67 | 4.00 | h6 | H8 |
| 860.1-0455-018A1-PM ● | 4.55 | 18.00 | 24.00 | 66.00 | 6.00 | 147.00 | 65.20 | 0.67 | 3.96 | h6 | H8 |
| 860.1-0460-018A1-PM ● | 4.60 | 18.00 | 24.00 | 66.00 | 6.00 | 147.00 | 65.20 | 0.68 | 3.91 | h6 | H8 |
| 860.1-0470-018A1-PM ● | 4.70 | 18.00 | 24.00 | 66.00 | 6.00 | 147.00 | 65.20 | 0.70 | 3.83 | h6 | H8 |
| 860.1-0476-019A1-PM ● | 4.76 | 19.00 | 28.00 | 66.00 | 6.00 | 147.00 | 65.20 | 0.70 | 3.99 | h6 | H8 |
| 860.1-0480-019A1-PM ● | 4.80 | 19.00 | 28.00 | 72.00 | 6.00 | 147.00 | 65.20 | 0.71 | 3.96 | h6 | H8 |
| 860.1-0490-019A1-PM ● | 4.90 | 19.00 | 28.00 | 72.00 | 6.00 | 147.00 | 65.20 | 0.73 | 3.88 | h6 | H8 |
| 860.1-0500-019A1-PM ● | 5.00 | 19.00 | 28.00 | 72.00 | 6.00 | 147.00 | 65.20 | 0.74 | 3.80 | h6 | H8 |
| 860.1-0510-019A1-PM ● | 5.10 | 19.00 | 28.00 | 72.00 | 6.00 | 147.00 | 65.20 | 0.76 | 3.73 | h6 | H8 |
● = Первый выбор ○ = Хороший выбор
