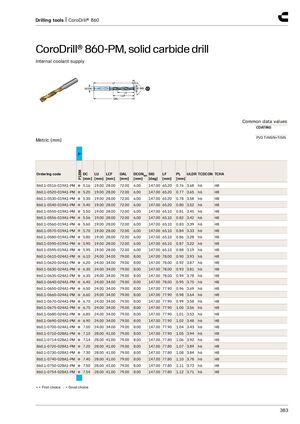

Каталог цельного осевого инструмента Sandvik 2026 - страница 387
Навигация
Дополнение к каталогам Sandvik 2020.2
Каталог Sandvik новые режущие инструменты 2020.1
Дополнение к каталогам Sandvik 2021.1
Каталог Sandvik цельный режущий инструмент 2020
Каталог Sandvik точение материалов высокой твердости- Selection guide
- Milling tools
- CoroMill® Dura
- CoroMill® Dura, solid carbide end mill for general machining
- CoroMill® Dura, solid carbide ball nose end mill for profiling
- CoroMill® Dura, solid carbide end mill for chamfer milling
- CoroMill® Plura
- CoroMill® Plura, solid carbide end mill for heavy duty milling
- CoroMill® Plura, solid carbide end mill for high feed side milling
- CoroMill® Plura solid carbide end mill for high feed side milling
- CoroMill® Plura, solid carbide end mill for high feed side milling
- CoroMill® Plura, solid carbide end mill for edging applications
- CoroMill® Plura, solid carbide end mill for stable multi-operations milling
- CoroMill® Plura, solid carbide end mill for finishing
- CoroMill® Plura, solid carbide end mill for large chip removal
- CoroMill® Plura, solid carbide end mill for high feed face milling
- CoroMill® Plura, solid carbide end mill for plunging
- CoroMill® Plura, solid carbide end mill for roughing with chip breaker
- CoroMill® Plura, solid carbide end mill for hard part milling
- CoroMill® Plura, solid carbide end mill for turn milling
- CoroMill® Plura, solid carbide end mill for micro-milling
- CoroMill® Plura, solid ceramic face mill
- CoroMill® Plura, solid ceramic end mill for high speed roughing
- CoroMill® Plura ball nose, solid carbide end mill for profiling
- CoroMill® Plura lollipop, solid carbide end mill for profiling
- CoroMill® Plura conical ball nose, solid carbide end mill for profiling
- CoroMill® Plura barrel, solid carbide end mill for profiling
- CoroMill® Plura, solid carbide ball nose end mill for profiling
- CoroMill® Plura, solid carbide ball nose end mill for micro-milling
- CoroMill® 316
- CoroMill® 316, solid carbide head for heavy duty milling
- CoroMill® 316, solid carbide head for stable multi-operation milling
- CoroMill® 316, solid carbide head for high feed side milling
- CoroMill® 316, solid carbide head for finishing
- CoroMill® 316, solid carbide head for high feed face milling
- CoroMill® 316, solid carbide head for high chip load milling
- CoroMill® 316, solid carbide head for large chip removal
- CoroMill® 316, solid carbide head for roughing with chip breaker
- CoroMill® 316, solid carbide head for profiling
- CoroMill® 316, solid carbide head for chamfer milling
- CoroMill® 316, solid carbide head with quarter circle profile
- CoroMill® 316, brazed ceramic head for high speed roughing
- Drilling tools
- CoroDrill® Dura 462
- CoroDrill® Dura 462, solid carbide step and chamfer drill for multi-materials
- CoroDrill® Dura 462, solid carbide drill for multi-materials
- CoroDrill® Dura 462, solid carbide micro drill for multi-materials
- CoroDrill® 860
- CoroDrill® 860-MM, solid carbide drill for ISO-M
- CoroDrill® 860-SD, solid carbide drill for ISO-S
- CoroDrill® 860-GM, solid carbide step and chamfer drill
- CoroDrill® 860-GM, solid carbide drill
- CoroDrill® 860-PM, solid carbide step and chamfer drill
- CoroDrill® 860-PM, solid carbide drill
- CoroDrill® 860-SM, Solid carbide drill
- CoroDrill® 860-NM, solid carbide drill
- CoroDrill® 862
- CoroDrill® 862-GM, solid carbide micro drill
- CoroDrill® 862-GM, solid carbide micro drill for pilot holes
- Tapping tools
- CoroTap® 100
- CoroTap® 100, cutting tap with straight flutes
- CoroTap® 200
- CoroTap® 200, cutting tap with spiral point
- CoroTap® 300
- CoroTap® 300, cutting tap with spiral flutes
- CoroTap® 400
- CoroTap® 400, forming tap
- Reaming tools
- CoroReamer® 435
- CoroReamer™ 435 solid carbide reamer
- CoroReamer® 830
- CoroReamer™ 830 solid carbide head for reaming
- Cylindrical shank to CoroReamer™ 830 adaptor
- CoroReamer® 835
- CoroReamer™ 835 solid carbide reamer
- Thread milling tools
- CoroMill® Plura
- CoroMill® Plura, solid carbide end mill for thread milling
- CoroMill® 326
- CoroMill® 326, solid carbide end mill for chamfer milling
- CoroMill® 326, solid carbide end mill for thread milling
- General information
- Coolant supply information
- Cutting tool parameters according to ISO 13399
- Tool reconditioning
Инструменты для сверления | CoroDrill® 860
CoroDrill® 860-PM, сверло из твёрдого сплава
Внутренняя подача СОЖ
| Общие значения | |
|---|---|
| Покрытие | PVD TiAlSiN+TiSiN |
Метрическая система (мм)
P, P1BM
| Код заказа | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0516-019A1-PM ● | 5.16 | 19.00 | 28.00 | 72.00 | 6.00 | 147.00 | 65.20 | 0.76 | 3.68 | h6 | H8 |
| 860.1-0520-019A1-PM ● | 5.20 | 19.00 | 28.00 | 72.00 | 6.00 | 147.00 | 65.20 | 0.77 | 3.65 | h6 | H8 |
| 860.1-0530-019A1-PM ● | 5.30 | 19.00 | 28.00 | 72.00 | 6.00 | 147.00 | 65.20 | 0.78 | 3.58 | h6 | H8 |
| 860.1-0540-019A1-PM ● | 5.40 | 19.00 | 28.00 | 72.00 | 6.00 | 147.00 | 65.20 | 0.80 | 3.52 | h6 | H8 |
| 860.1-0550-019A1-PM ● | 5.50 | 19.00 | 28.00 | 72.00 | 6.00 | 147.00 | 65.10 | 0.81 | 3.45 | h6 | H8 |
| 860.1-0556-019A1-PM ● | 5.56 | 19.00 | 28.00 | 72.00 | 6.00 | 147.00 | 65.10 | 0.82 | 3.42 | h6 | H8 |
| 860.1-0560-019A1-PM ● | 5.60 | 19.00 | 28.00 | 72.00 | 6.00 | 147.00 | 65.10 | 0.83 | 3.39 | h6 | H8 |
| 860.1-0570-019A1-PM ● | 5.70 | 19.00 | 28.00 | 72.00 | 6.00 | 147.00 | 65.10 | 0.84 | 3.33 | h6 | H8 |
| 860.1-0580-019A1-PM ● | 5.80 | 19.00 | 28.00 | 72.00 | 6.00 | 147.00 | 65.10 | 0.86 | 3.28 | h6 | H8 |
| 860.1-0590-019A1-PM ● | 5.90 | 19.00 | 28.00 | 72.00 | 6.00 | 147.00 | 65.10 | 0.87 | 3.22 | h6 | H8 |
| 860.1-0595-019A1-PM ● | 5.95 | 19.00 | 28.00 | 72.00 | 6.00 | 147.00 | 65.10 | 0.88 | 3.19 | h6 | H8 |
| 860.1-0610-024A1-PM ● | 6.10 | 24.00 | 34.00 | 79.00 | 8.00 | 147.00 | 78.00 | 0.90 | 3.93 | h6 | H8 |
| 860.1-0620-024A1-PM ● | 6.20 | 24.00 | 34.00 | 79.00 | 8.00 | 147.00 | 78.00 | 0.92 | 3.87 | h6 | H8 |
| 860.1-0630-024A1-PM ● | 6.30 | 24.00 | 34.00 | 79.00 | 8.00 | 147.00 | 78.00 | 0.93 | 3.81 | h6 | H8 |
| 860.1-0635-024A1-PM ● | 6.35 | 24.00 | 34.00 | 79.00 | 8.00 | 147.00 | 78.00 | 0.94 | 3.78 | h6 | H8 |
| 860.1-0640-024A1-PM ● | 6.40 | 24.00 | 34.00 | 79.00 | 8.00 | 147.00 | 78.00 | 0.95 | 3.75 | h6 | H8 |
| 860.1-0650-024A1-PM ● | 6.50 | 24.00 | 34.00 | 79.00 | 8.00 | 147.00 | 77.90 | 0.96 | 3.69 | h6 | H8 |
| 860.1-0660-024A1-PM ● | 6.60 | 24.00 | 34.00 | 79.00 | 8.00 | 147.00 | 77.90 | 0.98 | 3.64 | h6 | H8 |
| 860.1-0670-024A1-PM ● | 6.70 | 24.00 | 34.00 | 79.00 | 8.00 | 147.00 | 77.90 | 0.99 | 3.58 | h6 | H8 |
| 860.1-0675-024A1-PM ● | 6.75 | 24.00 | 34.00 | 79.00 | 8.00 | 147.00 | 77.90 | 1.00 | 3.56 | h6 | H8 |
| 860.1-0680-024A1-PM ● | 6.80 | 24.00 | 34.00 | 79.00 | 8.00 | 147.00 | 77.90 | 1.01 | 3.53 | h6 | H8 |
| 860.1-0690-024A1-PM ● | 6.90 | 24.00 | 34.00 | 79.00 | 8.00 | 147.00 | 77.90 | 1.02 | 3.48 | h6 | H8 |
| 860.1-0700-024A1-PM ● | 7.00 | 24.00 | 34.00 | 79.00 | 8.00 | 147.00 | 77.90 | 1.04 | 3.43 | h6 | H8 |
| 860.1-0710-028A1-PM ● | 7.10 | 28.00 | 41.00 | 79.00 | 8.00 | 147.00 | 77.90 | 1.05 | 3.94 | h6 | H8 |
| 860.1-0714-028A1-PM ● | 7.14 | 28.00 | 41.00 | 79.00 | 8.00 | 147.00 | 77.80 | 1.06 | 3.92 | h6 | H8 |
| 860.1-0720-028A1-PM ● | 7.20 | 28.00 | 41.00 | 79.00 | 8.00 | 147.00 | 77.80 | 1.07 | 3.89 | h6 | H8 |
| 860.1-0730-028A1-PM ● | 7.30 | 28.00 | 41.00 | 79.00 | 8.00 | 147.00 | 77.80 | 1.08 | 3.84 | h6 | H8 |
| 860.1-0740-028A1-PM ● | 7.40 | 28.00 | 41.00 | 79.00 | 8.00 | 147.00 | 77.80 | 1.10 | 3.78 | h6 | H8 |
| 860.1-0750-028A1-PM ● | 7.50 | 28.00 | 41.00 | 79.00 | 8.00 | 147.00 | 77.80 | 1.11 | 3.73 | h6 | H8 |
| 860.1-0754-028A1-PM ● | 7.54 | 28.00 | 41.00 | 79.00 | 8.00 | 147.00 | 77.80 | 1.12 | 3.71 | h6 | H8 |
● = Первый выбор ○ = Хороший выбор
