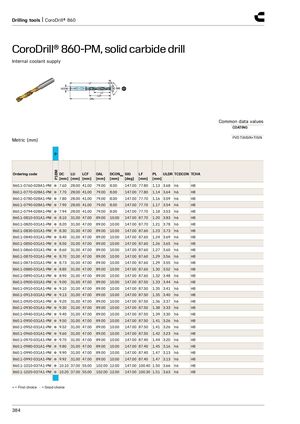

Инструменты для сверления | CoroDrill® 860
CoroDrill® 860-PM, сверло из твёрдого сплава
Внутренняя подача СОЖ
| Общие значения | |
|---|---|
| Покрытие | PVD TiAlSiN+TiSiN |
Метрическая система (мм)
P, P1BM
| Код заказа | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0760-028A1-PM ● | 7.60 | 28.00 | 41.00 | 79.00 | 8.00 | 147.00 | 77.80 | 1.13 | 3.68 | h6 | H8 |
| 860.1-0770-028A1-PM ● | 7.70 | 28.00 | 41.00 | 79.00 | 8.00 | 147.00 | 77.80 | 1.14 | 3.64 | h6 | H8 |
| 860.1-0780-028A1-PM ● | 7.80 | 28.00 | 41.00 | 79.00 | 8.00 | 147.00 | 77.70 | 1.16 | 3.59 | h6 | H8 |
| 860.1-0790-028A1-PM ● | 7.90 | 28.00 | 41.00 | 79.00 | 8.00 | 147.00 | 77.70 | 1.17 | 3.54 | h6 | H8 |
| 860.1-0794-028A1-PM ● | 7.94 | 28.00 | 41.00 | 79.00 | 8.00 | 147.00 | 77.70 | 1.18 | 3.53 | h6 | H8 |
| 860.1-0810-031A1-PM ● | 8.10 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.70 | 1.20 | 3.83 | h6 | H8 |
| 860.1-0820-031A1-PM ● | 8.20 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.70 | 1.21 | 3.78 | h6 | H8 |
| 860.1-0830-031A1-PM ● | 8.30 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.60 | 1.23 | 3.73 | h6 | H8 |
| 860.1-0840-031A1-PM ● | 8.40 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.60 | 1.24 | 3.69 | h6 | H8 |
| 860.1-0850-031A1-PM ● | 8.50 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.60 | 1.26 | 3.65 | h6 | H8 |
| 860.1-0860-031A1-PM ● | 8.60 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.60 | 1.27 | 3.60 | h6 | H8 |
| 860.1-0870-031A1-PM ● | 8.70 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.60 | 1.29 | 3.56 | h6 | H8 |
| 860.1-0873-031A1-PM ● | 8.73 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.60 | 1.29 | 3.55 | h6 | H8 |
| 860.1-0880-031A1-PM ● | 8.80 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.60 | 1.30 | 3.52 | h6 | H8 |
| 860.1-0890-031A1-PM ● | 8.90 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.60 | 1.32 | 3.48 | h6 | H8 |
| 860.1-0900-031A1-PM ● | 9.00 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.50 | 1.33 | 3.44 | h6 | H8 |
| 860.1-0910-031A1-PM ● | 9.10 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.50 | 1.35 | 3.41 | h6 | H8 |
| 860.1-0913-031A1-PM ● | 9.13 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.50 | 1.35 | 3.40 | h6 | H8 |
| 860.1-0920-031A1-PM ● | 9.20 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.50 | 1.36 | 3.37 | h6 | H8 |
| 860.1-0930-031A1-PM ● | 9.30 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.50 | 1.38 | 3.33 | h6 | H8 |
| 860.1-0940-031A1-PM ● | 9.40 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.50 | 1.39 | 3.30 | h6 | H8 |
| 860.1-0950-031A1-PM ● | 9.50 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.50 | 1.41 | 3.26 | h6 | H8 |
| 860.1-0952-031A1-PM ● | 9.52 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.50 | 1.41 | 3.26 | h6 | H8 |
| 860.1-0960-031A1-PM ● | 9.60 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.50 | 1.42 | 3.23 | h6 | H8 |
| 860.1-0970-031A1-PM ● | 9.70 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.40 | 1.44 | 3.20 | h6 | H8 |
| 860.1-0980-031A1-PM ● | 9.80 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.40 | 1.45 | 3.16 | h6 | H8 |
| 860.1-0990-031A1-PM ● | 9.90 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.40 | 1.47 | 3.13 | h6 | H8 |
| 860.1-0992-031A1-PM ● | 9.92 | 31.00 | 47.00 | 89.00 | 10.00 | 147.00 | 87.40 | 1.47 | 3.13 | h6 | H8 |
| 860.1-1010-037A1-PM ● | 10.10 | 37.00 | 55.00 | 102.00 | 12.00 | 147.00 | 100.40 | 1.50 | 3.66 | h6 | H8 |
| 860.1-1020-037A1-PM ● | 10.20 | 37.00 | 55.00 | 102.00 | 12.00 | 147.00 | 100.30 | 1.51 | 3.63 | h6 | H8 |
● = Первый выбор ○ = Хороший выбор
