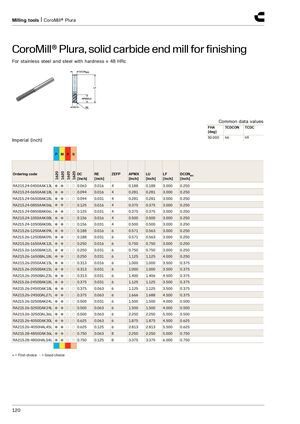

Фрезерный инструмент | CoroMill® Plura
CoroMill® Plura, концевая фреза из твердого сплава для чистовой обработки
Для нержавеющей стали и стали твердостью ≤ 48 HRc
Общие значения данных: FHA [град] 50.000, TCDCON h6, TCDC h9
Дюймовая система (дюйм)
Марки сплава: P M K S — 1620 / 1620 / 1620 / 1620
| Код заказа | P | M | K | S | DC [дюйм] | RE [дюйм] | ZEFP | APMX [дюйм] | LU [дюйм] | LF [дюйм] | DCONMS [дюйм] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RA215.24-0450AAK13L | ● | ● | ○ | ○ | 0.063 | 0.016 | 4 | 0.188 | 0.188 | 3.000 | 0.250 |
| RA215.24-0650AAK18L | ● | ● | ○ | ○ | 0.094 | 0.016 | 4 | 0.281 | 0.281 | 3.000 | 0.250 |
| RA215.24-0650BAK18L | ● | ● | ○ | ○ | 0.094 | 0.031 | 4 | 0.281 | 0.281 | 3.000 | 0.250 |
| RA215.24-0850AAK06L | ● | ● | ○ | ○ | 0.125 | 0.016 | 4 | 0.375 | 0.375 | 3.000 | 0.250 |
| RA215.24-0850BAK06L | ● | ● | ○ | ○ | 0.125 | 0.031 | 4 | 0.375 | 0.375 | 3.000 | 0.250 |
| RA215.24-1050AAK08L | ● | ● | ○ | ○ | 0.156 | 0.016 | 4 | 0.500 | 0.500 | 3.000 | 0.250 |
| RA215.24-1050BAK08L | ● | ● | ○ | ○ | 0.156 | 0.031 | 4 | 0.500 | 0.500 | 3.000 | 0.250 |
| RA215.26-1250AAK09L | ● | ● | ○ | ○ | 0.188 | 0.016 | 6 | 0.571 | 0.563 | 3.000 | 0.250 |
| RA215.26-1250BAK09L | ● | ● | ○ | ○ | 0.188 | 0.031 | 6 | 0.571 | 0.563 | 3.000 | 0.250 |
| RA215.26-1650AAK12L | ● | ● | ○ | ○ | 0.250 | 0.016 | 6 | 0.750 | 0.750 | 3.000 | 0.250 |
| RA215.26-1650BAK12L | ● | ● | ○ | ○ | 0.250 | 0.031 | 6 | 0.750 | 0.750 | 3.000 | 0.250 |
| RA215.26-1650BAL18L | ● | ● | ○ | ○ | 0.250 | 0.031 | 6 | 1.125 | 1.125 | 4.000 | 0.250 |
| RA215.26-2050AAK15L | ● | ● | ○ | ○ | 0.313 | 0.016 | 6 | 1.000 | 1.000 | 3.500 | 0.375 |
| RA215.26-2050BAK15L | ● | ● | ○ | ○ | 0.313 | 0.031 | 6 | 1.000 | 1.000 | 3.500 | 0.375 |
| RA215.26-2050BAL23L | ● | ● | ○ | ○ | 0.313 | 0.031 | 6 | 1.400 | 1.406 | 4.500 | 0.375 |
| RA215.26-2450BAK18L | ● | ● | ○ | ○ | 0.375 | 0.031 | 6 | 1.125 | 1.125 | 3.500 | 0.375 |
| RA215.26-2450DAK18L | ● | ● | ○ | ○ | 0.375 | 0.063 | 6 | 1.125 | 1.125 | 3.500 | 0.375 |
| RA215.26-2450DAL27L | ● | ● | ○ | ○ | 0.375 | 0.063 | 6 | 1.666 | 1.688 | 4.500 | 0.375 |
| RA215.26-3250BAK24L | ● | ● | ○ | ○ | 0.500 | 0.031 | 6 | 1.500 | 1.500 | 4.000 | 0.500 |
| RA215.26-3250DAK24L | ● | ● | ○ | ○ | 0.500 | 0.063 | 6 | 1.500 | 1.500 | 4.000 | 0.500 |
| RA215.26-3250DAL36L | ● | ● | ○ | ○ | 0.500 | 0.063 | 6 | 2.250 | 2.250 | 5.000 | 0.500 |
| RA215.26-4050DAK30L | ● | ● | ○ | ○ | 0.625 | 0.063 | 6 | 1.875 | 1.875 | 4.500 | 0.625 |
| RA215.26-4050HAL45L | ● | ● | ○ | ○ | 0.625 | 0.125 | 6 | 2.813 | 2.813 | 5.500 | 0.625 |
| RA215.28-4850DAK36L | ● | ● | ○ | ○ | 0.750 | 0.063 | 8 | 2.250 | 2.250 | 5.000 | 0.750 |
| RA215.28-4850HAL54L | ● | ● | ○ | ○ | 0.750 | 0.125 | 8 | 3.375 | 3.375 | 6.000 | 0.750 |
● = Первый выбор ○ = Хороший выбор
