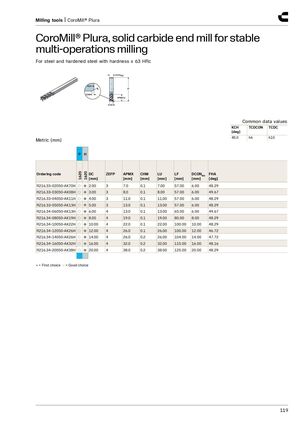

Фрезерный инструмент | CoroMill® Plura
CoroMill® Plura, концевая фреза из твердого сплава для стабильной многооперационной фрезеровки
Для стали и закаленной стали твердостью ≤ 63 HRc
Общие значения данных: KCH [град] 45.0, TCDCON h6, TCDC h10
Метрическая система (мм)
Марки сплава: P H — 1620 / 1620
| Код заказа | P | H | DC [мм] | ZEFP | APMX [мм] | CHW [мм] | LU [мм] | LF [мм] | DCONMS [мм] | FHA [град] |
|---|---|---|---|---|---|---|---|---|---|---|
| R216.33-02050-AK70H | ○ | ● | 2.00 | 3 | 7.0 | 0.1 | 7.00 | 57.00 | 6.00 | 48.29 |
| R216.33-03050-AK08H | ○ | ● | 3.00 | 3 | 8.0 | 0.1 | 8.00 | 57.00 | 6.00 | 49.67 |
| R216.33-04050-AK11H | ○ | ● | 4.00 | 3 | 11.0 | 0.1 | 11.00 | 57.00 | 6.00 | 48.29 |
| R216.33-05050-AK13H | ○ | ● | 5.00 | 3 | 13.0 | 0.1 | 13.00 | 57.00 | 6.00 | 48.29 |
| R216.34-06050-AK13H | ○ | ● | 6.00 | 4 | 13.0 | 0.1 | 13.00 | 65.00 | 6.00 | 49.67 |
| R216.34-08050-AK19H | ○ | ● | 8.00 | 4 | 19.0 | 0.1 | 19.00 | 80.00 | 8.00 | 48.29 |
| R216.34-10050-AK22H | ○ | ● | 10.00 | 4 | 22.0 | 0.1 | 22.00 | 100.00 | 10.00 | 48.29 |
| R216.34-12050-AK26H | ○ | ● | 12.00 | 4 | 26.0 | 0.1 | 26.00 | 100.00 | 12.00 | 46.72 |
| R216.34-14050-AK26H | ○ | ● | 14.00 | 4 | 26.0 | 0.2 | 26.00 | 104.00 | 14.00 | 47.72 |
| R216.34-16050-AK32H | ○ | ● | 16.00 | 4 | 32.0 | 0.2 | 32.00 | 115.00 | 16.00 | 48.16 |
| R216.34-20050-AK38H | ○ | ● | 20.00 | 4 | 38.0 | 0.2 | 38.00 | 125.00 | 20.00 | 48.29 |
● = Первый выбор ○ = Хороший выбор
